09185167813
09185167813
Harting

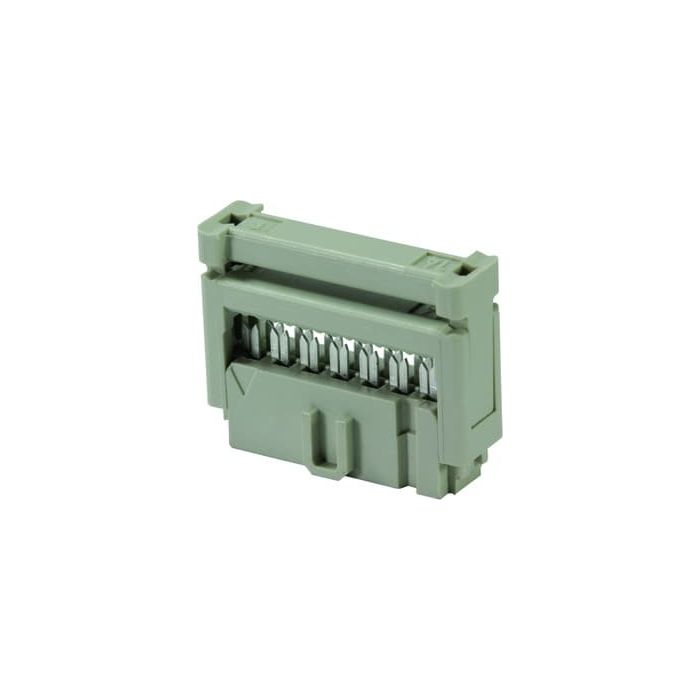

SEK-18 SV FE TYPA ZGL 16P PL3
Female connector, Rated current:2.5 A, Thermoplastic resin (PBT), Grey, Contacts: 16, Performance level: 3, Copper alloy, Sn over Ni, Termination side, Au over Ni, Mating side
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | SEK Socket |
| Product Family | SEK |
| Product Brand Name | 09 18 516 7813 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100.0000 |
| Quantity Interval | 100.0000 |
| Country of origin | RO |
| Number of poles | 16.0000 |
| Material of insulation | Polybutylene terephthalate |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 2.0000 |
| Grid dimensions 1 (mm) | 1.27 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | Other |
| Actuating element colour | 0 |
| Conductor contact area coating | Tin (Sn) |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | IEC 60603-13 |
| Current Rating (A) | 2.5 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
