09185206322
09185206322
Harting

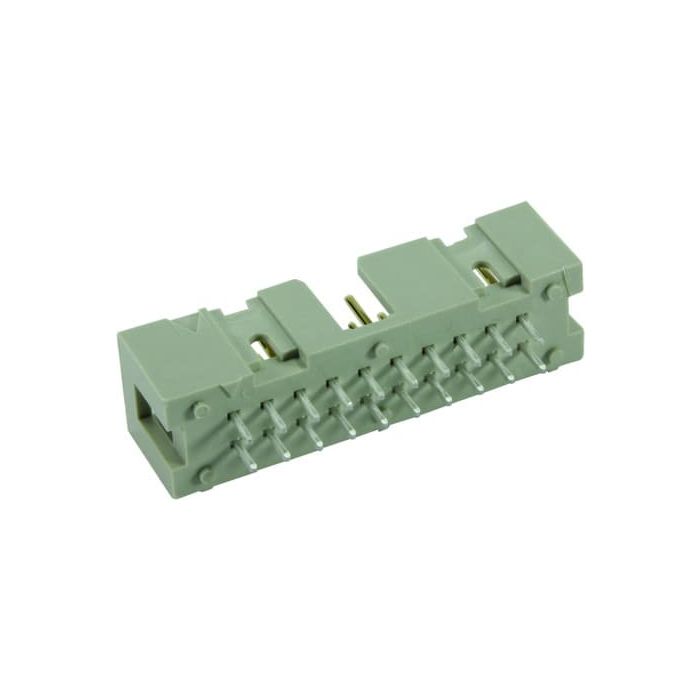

SEK-18 SV MA LP STR45 20P PL2
Connectors, Male connector, Wave soldering termination, Rated current:1 A, Contacts: 20, Straight, Copper alloy, Sn over Ni, Termination side, Au over Pd/Ni, Mating side, Performance level: 2, Thermoplastic resin (PBT), Grey
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | SEK Male low profile |
| Product Family | SEK |
| Product Brand Name | 09 18 520 6322 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100.0000 |
| Quantity Interval | 100.0000 |
| Country of origin | RO |
| Number of poles | 20.0000 |
| Material contact surface | Sn over Ni |
| Material of insulation | Thermoplast |
| Direction mating face | Standard |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 2.0000 |
| Type of PCB contacting | THT connection (Wave soldering) |
| Grid dimensions 2 (mm) | 2.54 |
| Pin length (mm) | 4.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1.0000 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
