09185406914

09185406914

09185406914

Harting

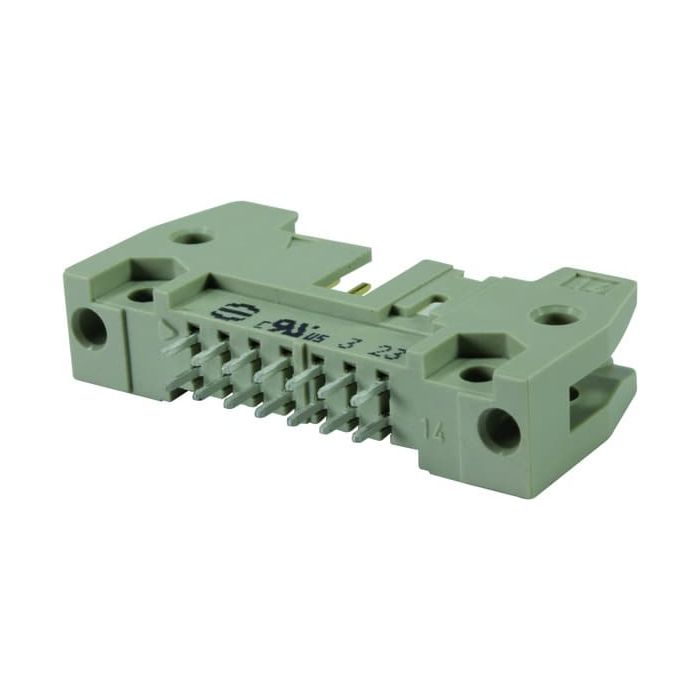

SEK-18 SV MA STD STR29 RKZ 40P PL2

Connectors, Male connector, Wave soldering termination, Rated current:1 A, Contacts: 40, Straight, Copper alloy, Sn over Ni, Termination side, Au over Pd/Ni, Mating side, Performance level: 2, Thermoplastic resin (PBT), Grey
In stock
£3.18
More Information
Attribute Value
Product Segment SEK Male standard
Product Family SEK
Product Brand Name 09 18 540 6914
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 50
Quantity Interval 50
Country of origin CH
Number of poles 40
Material contact surface Sn over Ni
Material of insulation Thermoplast
Interlock type With short levers
Direction mating face Standard
Coating plug contact area Tin (Sn)
Number of rows 2
Type of PCB contacting THT connection (Wave soldering)
Grid dimensions 2 (mm) 2.54
Pin length (mm) 2.9
Locking system Self-locking flange
Material contact Other copper alloys
Fire resistance class V0
Current Rating (A) 1
Temperature Range -55 to 125 Deg. C
More Information
Attribute Value
Data Sheet Click here to view
