09190209643

09190209643

09190209643

Harting

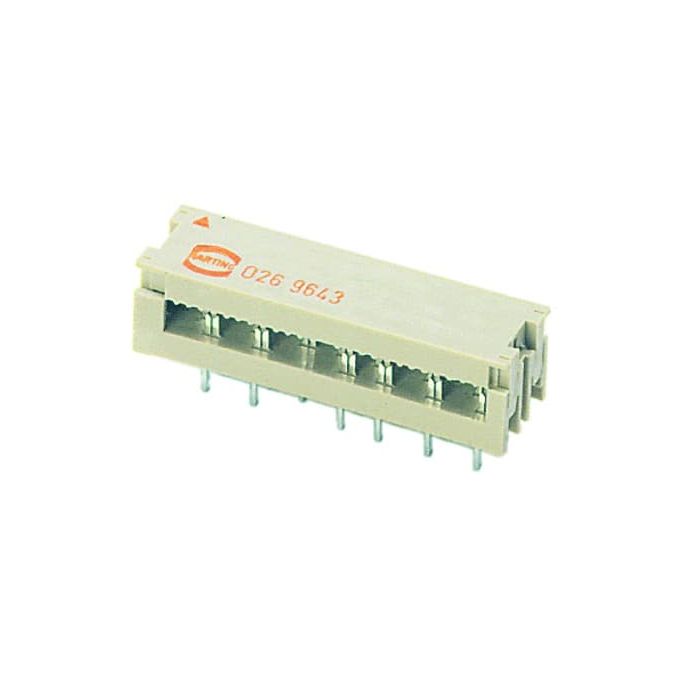

SEK 19-20 (4) M-S32-AU KONTAKT

PCB transition connectors, Solder termination, IDC termination, Rated current:1 A, Thermoplastic resin (PC), Beige, Contacts: 20
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment SEK DIP / PCB
Product Family SEK
Product Brand Name 09 19 020 9643
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 91.0000
Quantity Interval 91.0000
Country of origin DE
Number of poles 20.0000
Material of insulation Polycarbonate (PC)
Number of rows 4.0000
Grid dimensions 1 (mm) 1.27
Grid dimensions 2 (mm) 2.54
Assembly Other
Actuating element colour 0
Connection conductor type Soldered connection
Fire resistance class V0
Standards IEC 60603-13
Current Rating (A) 1.0000
Temperature Range -40 to 125 Deg. C
More Information
Attribute Value
Data Sheet Click here to view
