Harting

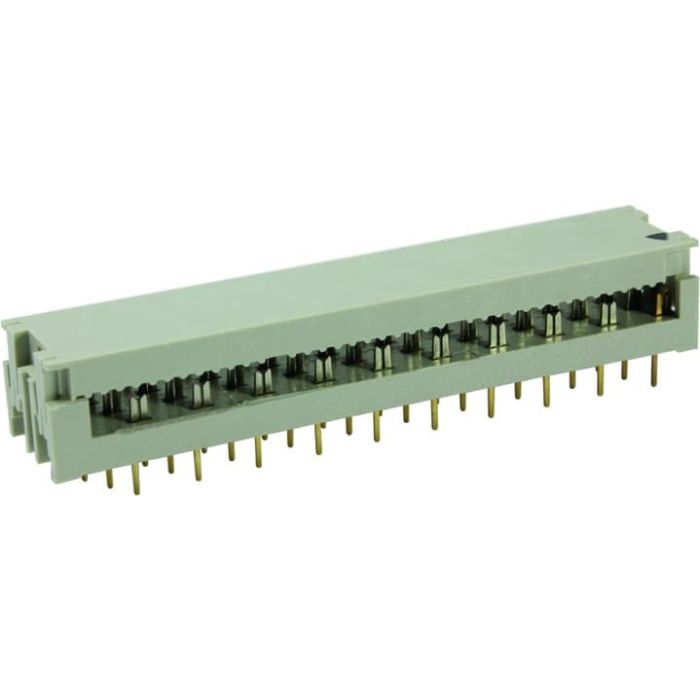

SEK 19-40 (4) M-S32-AU KONTAKT
PCB transition connectors, Solder termination, IDC termination, Rated current:1 A, Thermoplastic resin (PC), Beige, Contacts: 40
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | SEK DIP / PCB |
| Product Family | SEK |
| Product Brand Name | 09 19 040 9643 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 52.0000 |
| Quantity Interval | 52.0000 |
| Country of origin | DE |
| Number of poles | 40.0000 |
| Material of insulation | Polycarbonate (PC) |
| Number of rows | 4.0000 |
| Grid dimensions 1 (mm) | 1.27 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | Other |
| Actuating element colour | 0 |
| Connection conductor type | Soldered connection |
| Fire resistance class | V0 |
| Standards | IEC 60603-13 |
| Current Rating (A) | 1.0000 |
| Temperature Range | -40 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
