Harting

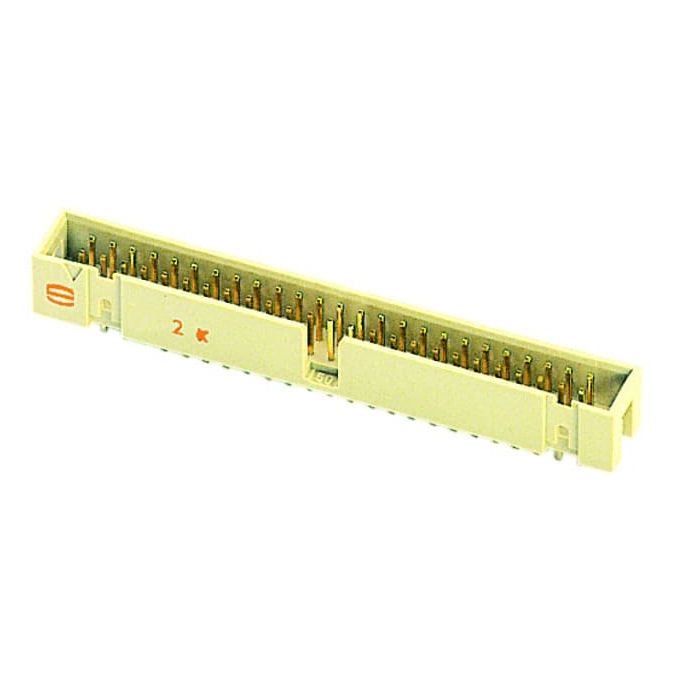

SEK-19 SV HT MA LP STR29 26P PL3

Connectors, Male connector, Reflow soldering termination (THR), Rated current:1 A, Contacts: 26, Straight, Copper alloy, Sn over Ni, Termination side, Gold plated, Mating side, Performance level: 3, Thermoplastic resin (PCT), Beige
In stock
£2.71
More Information
Attribute Value
Product Segment SEK Male low profile
Product Family SEK
Product Brand Name 09 19 526 7324
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 100
Quantity Interval 100
Country of origin RO
Number of poles 26
Material contact surface Sn over Ni
Material of insulation Thermoplast
Direction mating face Standard
Coating plug contact area Tin (Sn)
Number of rows 2
Type of PCB contacting THR connection
Grid dimensions 2 (mm) 2.54
Pin length (mm) 2.9
Material contact Other copper alloys
Fire resistance class V0
Current Rating (A) 1
Temperature Range -55 to 125 Deg. C
