09195346324
09195346324
Harting

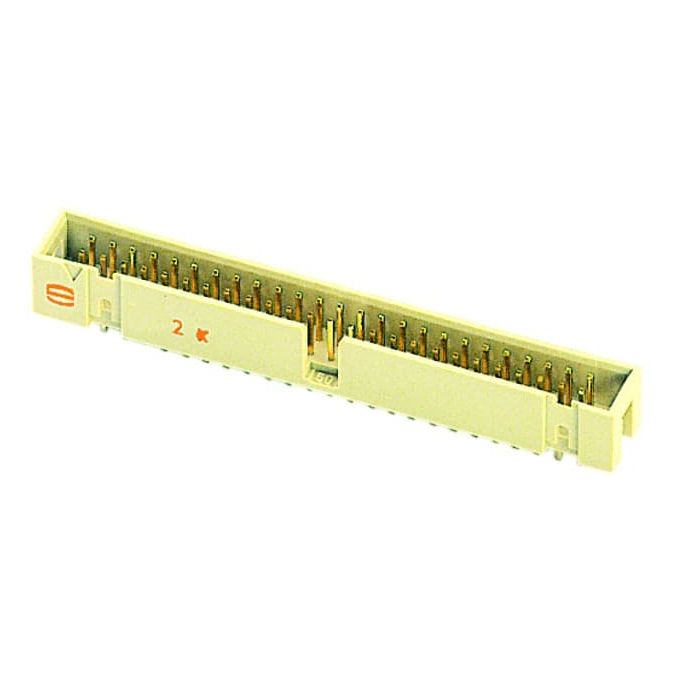

SEK-19 SV HT MA LP STR29 34P PL2
Connectors, Male connector, Reflow soldering termination (THR), Rated current:1 A, Contacts: 34, Straight, Copper alloy, Sn over Ni, Termination side, Au over Pd/Ni, Mating side, Performance level: 2, Thermoplastic resin (PCT), Beige
In stock
| Attribute | Value |
|---|---|
| Product Segment | SEK Male low profile |
| Product Family | SEK |
| Product Brand Name | 09 19 534 6324 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100 |
| Quantity Interval | 100 |
| Country of origin | RO |
| Number of poles | 34 |
| Material contact surface | Sn over Ni |
| Material of insulation | Thermoplast |
| Direction mating face | Standard |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 2 |
| Type of PCB contacting | THR connection |
| Grid dimensions 2 (mm) | 2.54 |
| Pin length (mm) | 2.9 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
