09200030745
09200030745
Harting

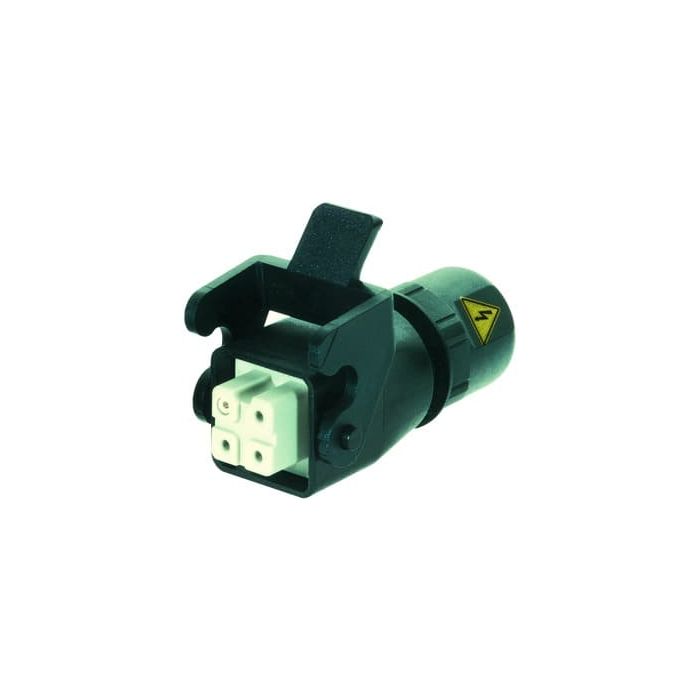

Han 3A with Harax Female / HCC
Connector sets, HARAX® connection technology, Female, Rated current:10 A, Contacts: 3, Copper alloy, Silver plated, Cable to cable housing, Size: 3 A, Top entry, Degree of protection: IP65, IP67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 421 Han A® |
| Product Family | Han A Housings |
| Product Brand Name | 09 20 003 0745 |
| Approvals | CE |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han A® |
| Number of poles | 3.0000 |
| Material contact surface | Silver |
| Degree of protection - IP (mounted) | IP65 |
| PE connection present ? | Yes |
| Contact design | Socket |
| Material of insulation | Polycarbonate (PC) |
| Rated_surge_voltage (V) | 4.0000 |
| Conductor connection method | Insulation displacement termination |
| Conductor cross-section mm2 | 1…1.5 |
| Cable entry direction | top |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 10.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
