Harting

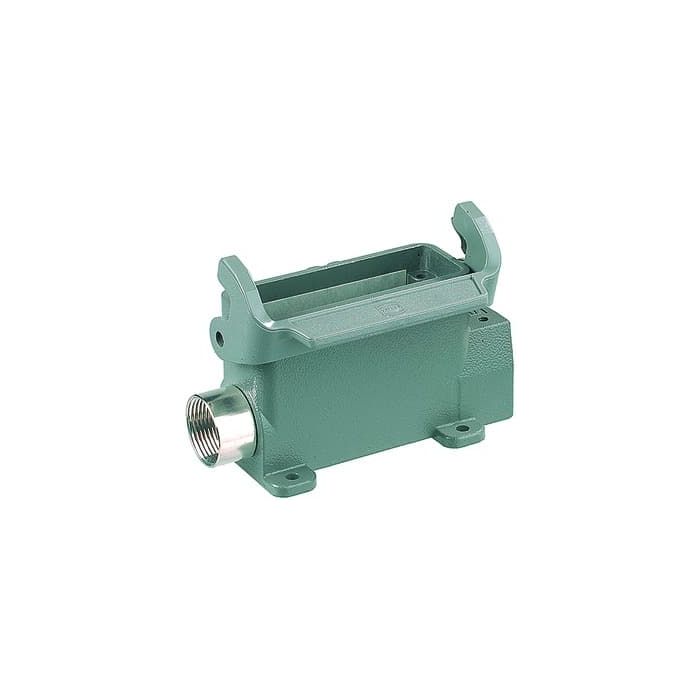

Han 16 A-asg1-LB-K-21
Surface mounted housing, With thermo-plastic cover, Size: 16 A, Low construction, Single locking lever, Polycarbonate (PC), Stainless steel, Side entry, 1x Pg 21, Material (hood/housing): Aluminium die-cast, Powder-coated, RAL 7037 (dust grey), Degree of protection: IP65
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 421 Han A® |
| Product Family | Han A Housings |
| Product Brand Name | 09 20 016 0222 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Grey |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han A® |
| Size | 16 A |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Socket housing |
| Housing colour | Grey |
| Interlock type | Longitudinal strap |
| Shackle position | Subsection |
| Size of connection thread | PG21 |
| Cable entry direction | lateral |
| Number of cable inlets | 1.0000 |
| Cable gland mounting method | PG |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Flap cover present ? | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
