09200162613
09200162613
Harting

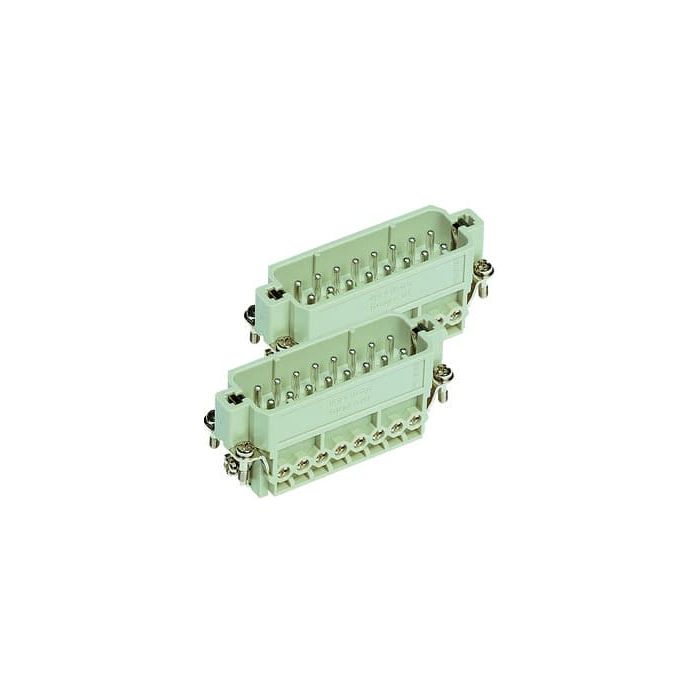

Han 16A-STI-S (17-32)
Inserts, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 32 A, Contacts: 32, Conductor cross-section: 0.75...2.5 mm, Copper alloy, Silver plated
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | 421 Han A® |
| Product Family | Han A Male Insert-S |
| Product Brand Name | 09 20 016 2613 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han A® |
| Size | 32 A |
| Number of poles | 32 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500 |
| PE connection present ? | Yes |
| Rated voltage (V) | 250 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 4 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Screw connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.75…2.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
