09200162891
09200162891
Harting

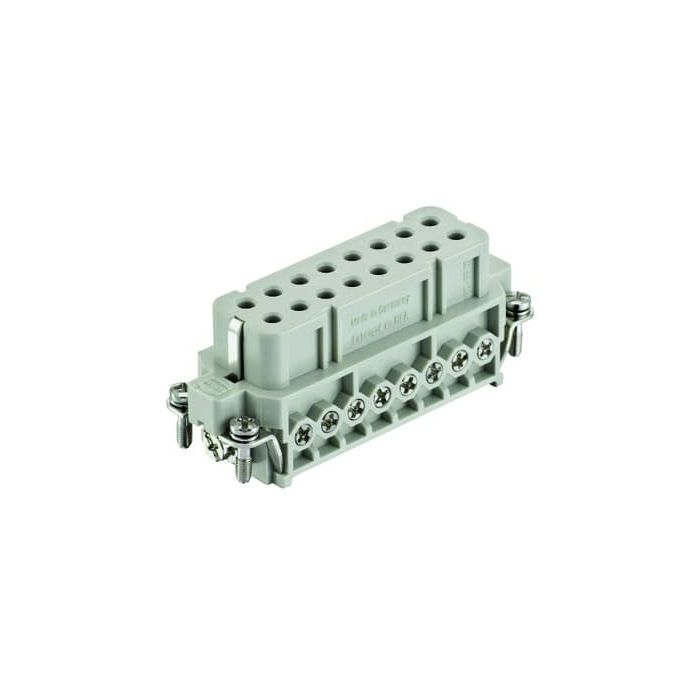

Han 16A-BU-S (FE(Au) / CuNi)
Inserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 16 A, Contacts: 16, Conductor cross-section: 1...2.5 mm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 421 Han A® |
| Product Family | Han A Female Insert- |
| Product Brand Name | 09 20 016 2891 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® Thermocouple |
| Size | 16 A |
| Number of poles | 16.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | Yes |
| Rated voltage (V) | 250.0000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 4.0000 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 1…2.5 |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
