09200320221
09200320221
Harting
Han 32A-asg1-K-29

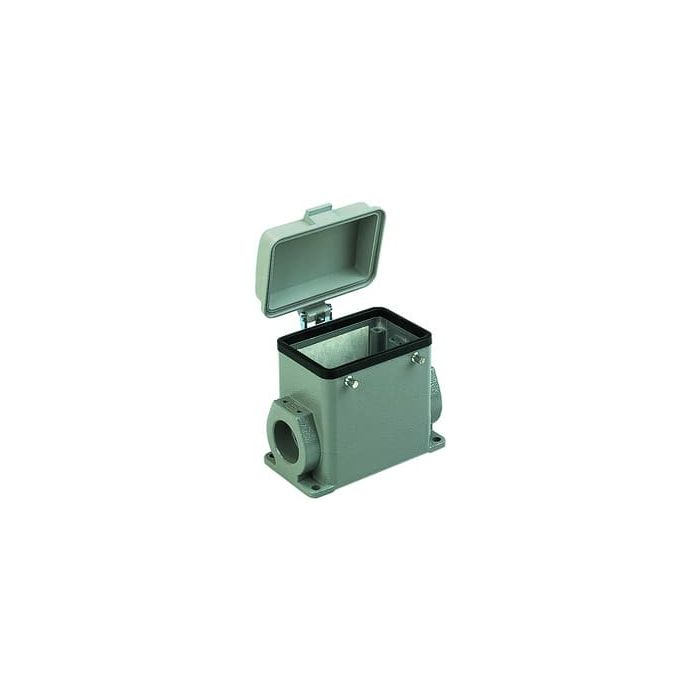

Surface mounted housing, With thermo-plastic cover, Size: 32 A, High construction, Double locking lever (on the hood), Side entry, 1x Pg 29, Material (hood/housing): Aluminium die-cast, Powder-coated, RAL 7037 (dust grey), Degree of protection: IP65
In stock
| Attribute | Value |
|---|---|
| Product Segment | 421 Han A® |
| Product Family | Han A Housings |
| Product Brand Name | 09 20 032 0221 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Grey |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han A® |
| Size | 32 A |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Socket housing |
| Housing colour | Grey |
| Interlock type | Transverse strap |
| Shackle position | top section |
| Size of connection thread | PG29 |
| Cable entry direction | lateral |
| Number of cable inlets | 1 |
| Cable gland mounting method | PG |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Flap cover present ? | Yes |
| Attribute | Value |
|---|---|
