Harting

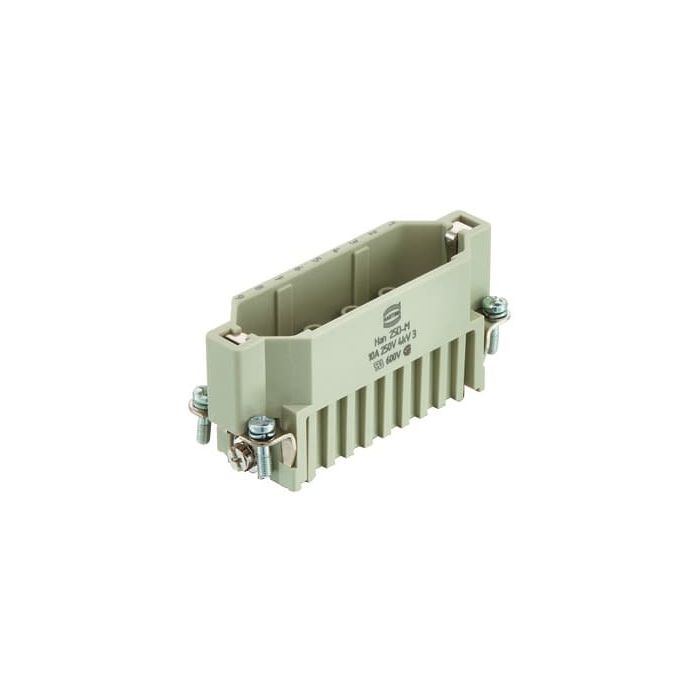

Han D 25 Pos. M Insert Crimp

Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:10 A, Size: 16 A, Contacts: 25, Conductor cross-section: 0.14 ... 2.5 mm
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment 403 Han D®
Product Family Han D Male Insert
Product Brand Name 09 21 025 3001
Manufacturer HARTING
Customs tariff number 85389099
Quantity Min 1.0000
Quantity Interval 1.0000
Country of origin RO
Manufacturer's Brand Han D®
Size 16 A
Number of poles 25.0000
Insertion cycles minimum 500.0000
PE connection present ? Yes
Rated voltage (V) 250.0000
Contact design Pin
Rated_surge_voltage (V) 4.0000
Wire protection present ? No
Insert material Thermoplast
Conductor connection method crimp connection
Pollution degree 3.0000
Conductor cross-section mm2 0.14…2.5
Contact insert without contact ? Yes
Fire resistance class V0
Standards EN 60664-1
Current Rating (A) 10.0000
More Information
Attribute Value
Data Sheet Click here to view
