09210643001
09210643001
Harting

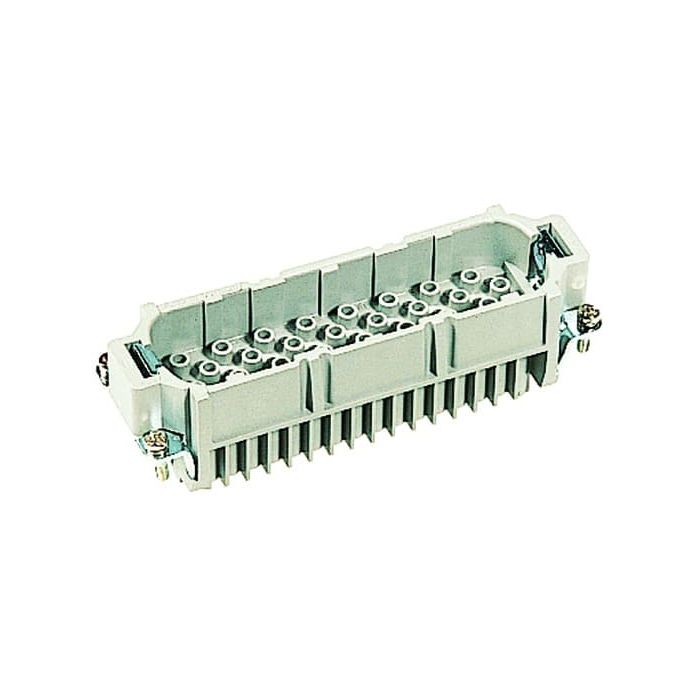

Han D 64 Pos. M Insert Crimp
Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:10 A, Size: 24 B, Contacts: 64, Conductor cross-section: 0.14 ... 2.5 mm
In stock
| Attribute | Value |
|---|---|
| Product Segment | 403 Han D® |
| Product Family | Han D Male Insert |
| Product Brand Name | 09 21 064 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | RO |
| Manufacturer's Brand | Han D® |
| Size | 24 B |
| Number of poles | 64 |
| Insertion cycles minimum | 500 |
| PE connection present ? | Yes |
| Rated voltage (V) | 250 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 4 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.14…2.5 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 10 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
