Harting

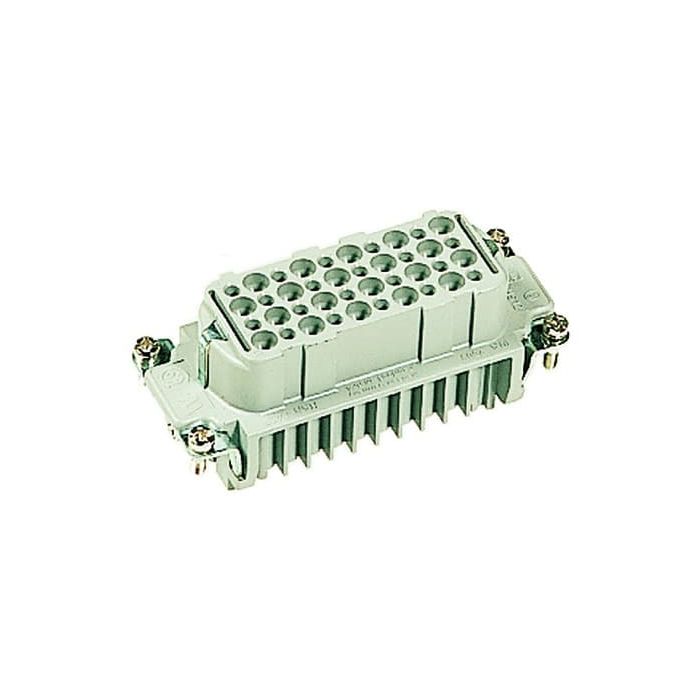

Han 40D-HMC-F-c
Inserts, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:10 A, Size: 16 B, Contacts: 40, Conductor cross-section: 0.14 ... 2.5 mm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | 403 Han D® |
Product Family | Han D Female Insert |
Product Brand Name | 09 21 240 3101 |
Manufacturer | HARTING |
Customs tariff number | 85389099 |
Quantity Min | 1.0000 |
Quantity Interval | 1.0000 |
Country of origin | DE |
Manufacturer's Brand | Han D® |
Size | 16 B |
Number of poles | 40.0000 |
PE connection present ? | Yes |
Rated voltage (V) | 250.0000 |
Contact design | Socket |
Rated_surge_voltage (V) | 4.0000 |
Wire protection present ? | No |
Insert material | Thermoplast |
Conductor connection method | crimp connection |
Pollution degree | 3.0000 |
Conductor cross-section mm2 | 0.14…2.5 |
Contact insert without contact ? | Yes |
Fire resistance class | V0 |
Standards | EN 60664-1 |
Current Rating (A) | 10.0000 |
