09310062611
09310062611
Harting

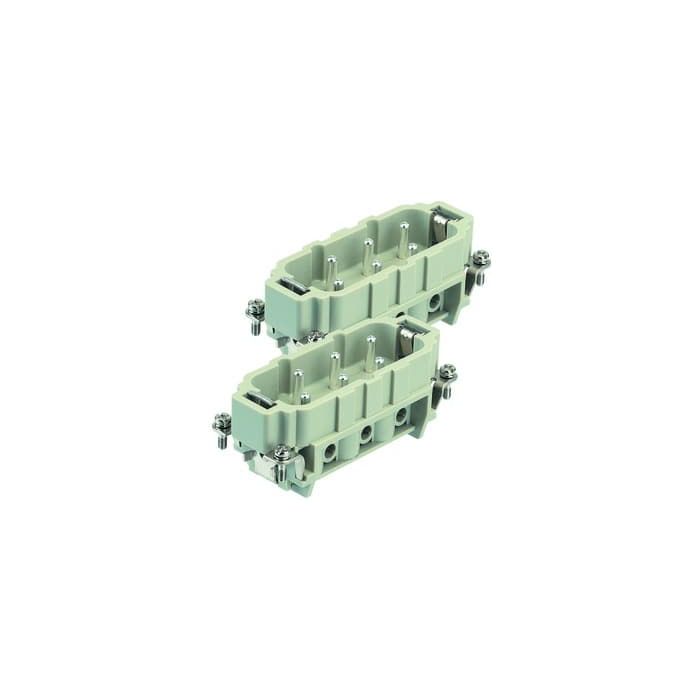

Han HsB 06 Pos. M Insert Screw 7-12
Inserts, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:35 A, Size: 32 B, Contacts: 12, Conductor cross-section: 1.5...6 mm, Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 412 Han® HsB |
| Product Family | Han HsB Male Insert |
| Product Brand Name | 09 31 006 2611 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Han® HsB |
| Size | 32 B |
| Number of poles | 12.0000 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | Yes |
| Contact design | Pin |
| Rated_surge_voltage (V) | 6.0000 |
| Wire protection present ? | Yes |
| Insert material | Thermoplast |
| Conductor connection method | Screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 1.5…6 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 35.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
