09330242616

09330242616

09330242616

Harting

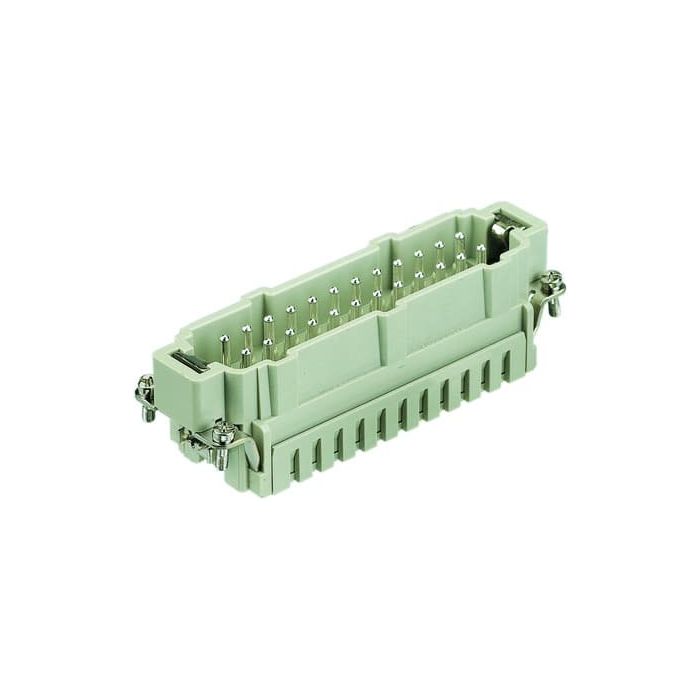

Han 24 ES-M insert

Inserts, Cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14...2.5 mm, Copper alloy, Silver plated
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment 413 Han® E / ES / ESS Inserts
Product Family Han ES/ESS Male Inse
Product Brand Name 09 33 024 2616
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1.0000
Quantity Interval 1.0000
Country of origin DE
Manufacturer's Brand Han® ES
Size 24 B
Number of poles 24.0000
Material contact surface Silver
Insertion cycles minimum 500.0000
PE connection present ? Yes
Rated voltage (V) 500.0000
Contact design Pin
Rated_surge_voltage (V) 6.0000
Wire protection present ? No
Insert material Thermoplast
Conductor connection method Spring pulley connection
Pollution degree 3.0000
Conductor cross-section mm2 0.14…2.5
Material contact Other copper alloys
Fire resistance class V0
Standards EN 60664-1
Current Rating (A) 16.0000
More Information
Attribute Value
Data Sheet Click here to view
