09330242711
09330242711
Harting

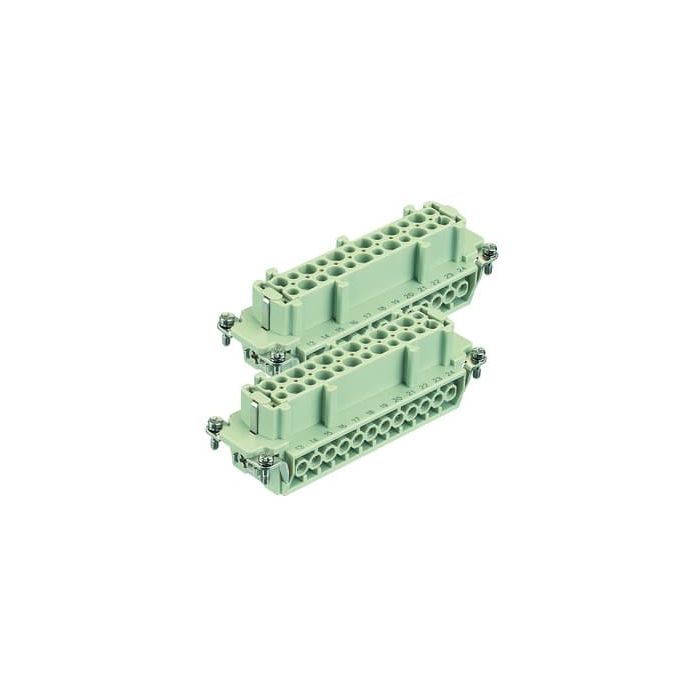

Han 24E F insert screw (25-48)
Inserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 48 B, Contacts: 48, Conductor cross-section: 0.75...2.5 mm, Copper alloy, Silver plated
In stock
| Attribute | Value |
|---|---|
| Product Segment | 413 Han® E / ES / ESS Inserts |
| Product Family | Han E Female Insert- |
| Product Brand Name | 09 33 024 2711 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han E® |
| Size | 48 B |
| Number of poles | 48 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500 |
| PE connection present ? | Yes |
| Rated voltage (V) | 500 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 6 |
| Wire protection present ? | Yes |
| Insert material | Thermoplast |
| Conductor connection method | Screw connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.75…2.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
