09338102603
09338102603
Harting

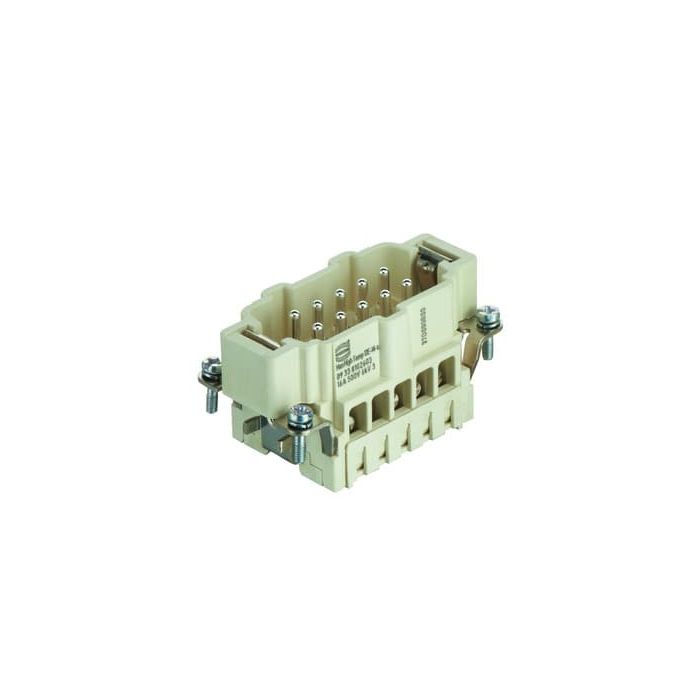

Han High Temp 10E-s Male
Inserts, Screw termination, Male, Liquid crystal polymer (LCP), Rated current:16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.75...2.5 mm, Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Segment | 413 Han® E / ES / ESS Inserts |
Product Family | Han E Male Insert-S |
Product Brand Name | 09 33 810 2603 |
Manufacturer | HARTING |
Customs tariff number | 85366990 |
Quantity Min | 1.0000 |
Quantity Interval | 1.0000 |
Country of origin | RO |
Manufacturer's Brand | Han E® |
Size | 10 B |
Number of poles | 10.0000 |
Material contact surface | Silver |
Insertion cycles minimum | 500.0000 |
PE connection present ? | Yes |
Rated voltage (V) | 500.0000 |
Contact design | Pin |
Rated_surge_voltage (V) | 6.0000 |
Wire protection present ? | Yes |
Insert material | Thermoplast |
Conductor connection method | Screw connection |
Pollution degree | 3.0000 |
Conductor cross-section mm2 | 0.75…2.5 |
Material contact | Other copper alloys |
Fire resistance class | V0 |
Standards | EN 60664-1 |
Current Rating (A) | 16.0000 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
