09352260403
09352260403
Harting

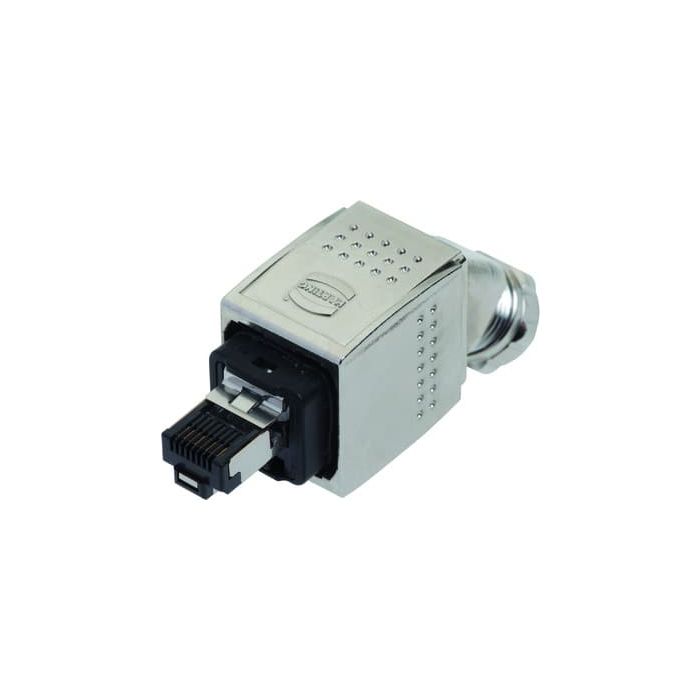

Han PP RJ45 PN metal plug set 45° top
Connectors, IDC termination, Rated current:1.75 A, Contacts: 4, PushPull, Top entry, Material: Zinc die-cast, Nickel plated, Degree of protection: IP65, IP67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Han PushPull |
| Product Family | Han PushPull |
| Product Brand Name | 09 35 226 0403 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Han® PushPull (V14) |
| Material housing | Zink print cast |
| Number of poles | 4.0000 |
| Degree of protection - IP (mounted) | IP65 |
| Rated voltage (V) | 50.0000 |
| Conductor connection method | Insulation displacement termination |
| Conductor cross-section mm2 | 0.22…0.32 |
| Interlock type | Push pull |
| Cable entry direction | Top entry |
| Housing surface finish | nickel-plated |
| Locking present ? | Yes |
| Fire resistance class | V0 |
| Standards | IEC 61076-3-117 |
| Current Rating (A) | 1.75 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
