09352320423
09352320423
Harting

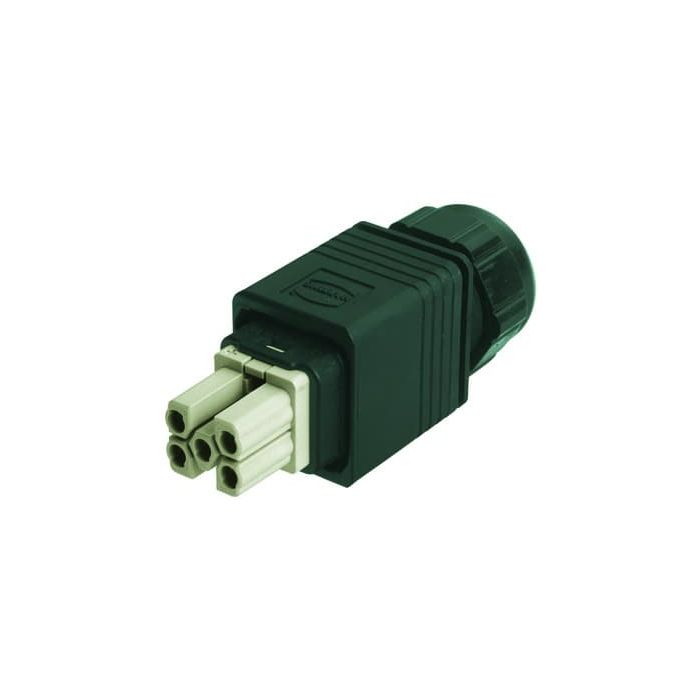

Han PP Power plug plastic QL AWG20-14
Connectors, Han-Quick Lock® termination, Rated current:16 A, Contacts: 5, Copper alloy, PushPull, Material: Thermoplastic, Degree of protection: IP65, IP67
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Han PushPull |
| Product Family | Han PushPull |
| Product Brand Name | 09 35 232 0423 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® PushPull (V14) |
| Material housing | Plastic |
| Number of poles | 5.0000 |
| Degree of protection - IP (mounted) | IP65 |
| PE connection present ? | No |
| Rated voltage (V) | 690.0000 |
| Material of insulation | Thermoplastic |
| Rated_surge_voltage (V) | 8.0000 |
| Conductor connection method | Radial spring connection |
| Conductor cross-section mm2 | 0.5…2.5 |
| Interlock type | Push pull |
| Locking present ? | Yes |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | IEC 61076-3-118 |
| Current Rating (A) | 16.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
