09354330401
09354330401
Harting

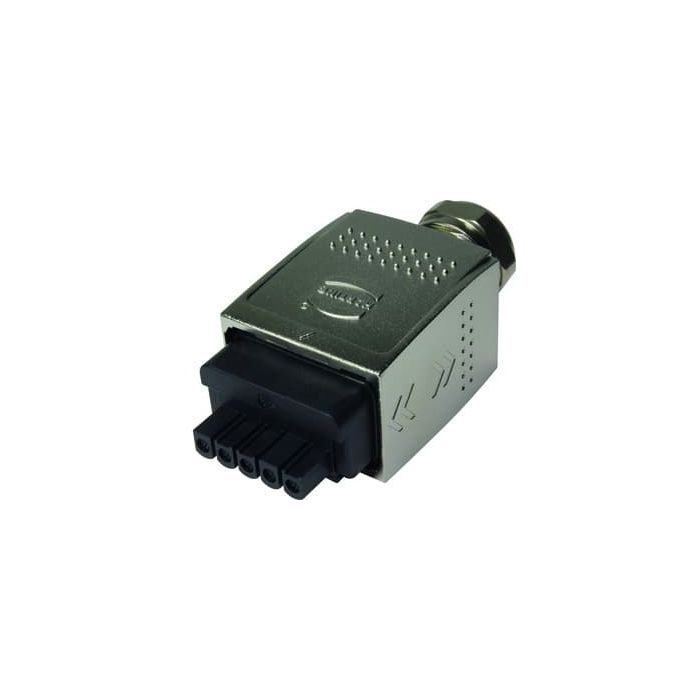

Han PP Power L Met plug fix cod 9-13mm
Connectors, Spring clamp termination, Rated current:16 A, Contacts: 5, Copper alloy, Sn over Ni, Termination side, Au over Ni, Mating side, PushPull, Material: Zinc die-cast, Nickel plated, Degree of protection: IP65, IP67
In stock
| Attribute | Value |
|---|---|
| Product Segment | Han PushPull |
| Product Family | Han PushPull |
| Product Brand Name | 09 35 433 0401 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | CN |
| Manufacturer's Brand | Han® PushPull (V14) |
| Material housing | Zink print cast |
| Number of poles | 5 |
| Material contact surface | Sn over Ni |
| Degree of protection - IP (mounted) | IP65 |
| PE connection present ? | No |
| Rated voltage (V) | 24 |
| Material of insulation | Polyamide (PA) |
| Rated_surge_voltage (V) | 1.5 |
| Conductor connection method | Spring pulley connection |
| Conductor cross-section mm2 | 0.75…2.5 |
| Interlock type | Push pull |
| Housing surface finish | nickel-plated |
| Locking present ? | Yes |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | IEC PAS 61076-3-126 |
| Current Rating (A) | 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
