09360082732
09360082732
Harting

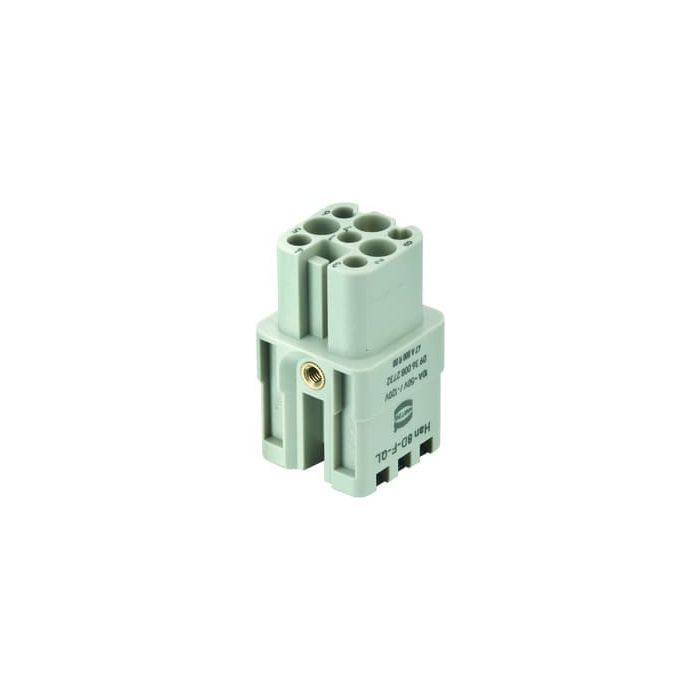

Han 8D-F Quick Lock 1,5mm
Inserts, Han-Quick Lock® termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:10 A, Size: 3 A, Contacts: 8, Conductor cross-section: 0.25¬†...¬†1.5 mm, Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 403 Han D® |
| Product Family | Han D Female Insert |
| Product Brand Name | 09 36 008 2732 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han D® |
| Size | 3 A |
| Number of poles | 8.0000 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Rated voltage (V) | 50.0000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 0.8 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Radial spring connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.25…1.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 10.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
