Harting

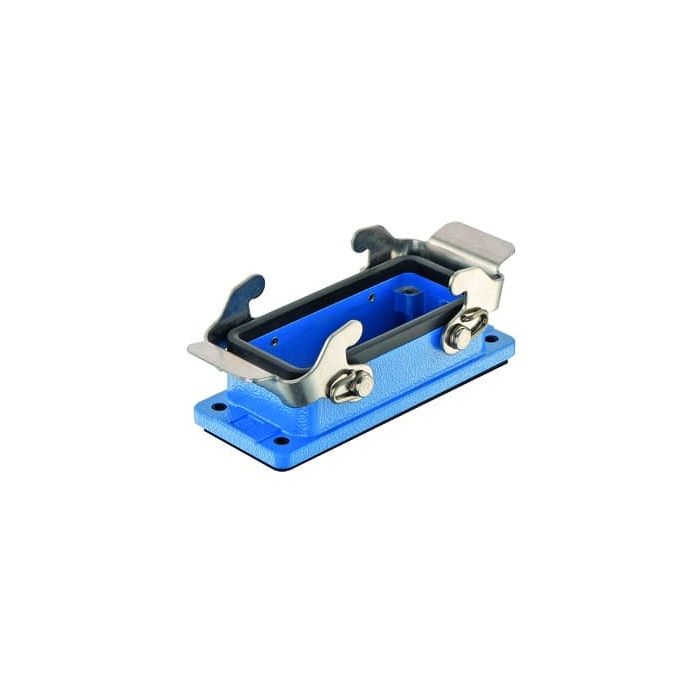

Han 16B Ex-HBM-Double Lever
Bulkhead mounted housing, Size: 16 B, Double locking lever, Stainless steel, Material (hood/housing): Zinc die-cast, Powder-coated, RAL 5015 (sky blue), Material (seal): NBR, Degree of protection: IP65, With cable gland
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 416 Han Ex |
| Product Family | Han Ex Housings |
| Product Brand Name | 09 36 016 1301 |
| Manufacturer | HARTING |
| Colour | light-blue |
| Customs tariff number | 85389099 |
| Quantity Min | 10.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CN |
| Manufacturer's Brand | Han® Ex |
| Size | 16 B |
| Material housing | Zink |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Add-on housing |
| Housing colour | Blue |
| Interlock type | Transverse strap |
| Shackle position | Subsection |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
