09360242602
09360242602
Harting

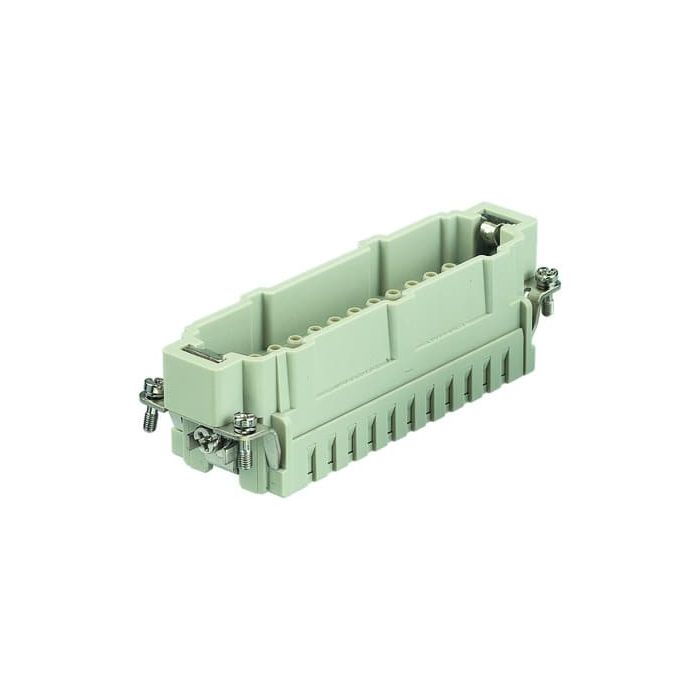

Han 24Ex-M-c
Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14...4 mm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 416 Han Ex |
| Product Family | Han Ex Male Inserts |
| Product Brand Name | 09 36 024 2602 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® Ex |
| Size | 24 B |
| Number of poles | 24.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | Yes |
| Rated voltage (V) | 90.0000 |
| Contact design | Pin |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Conductor cross-section mm2 | 0.14…4 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Current Rating (A) | 16.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
