09370030305
09370030305
Harting

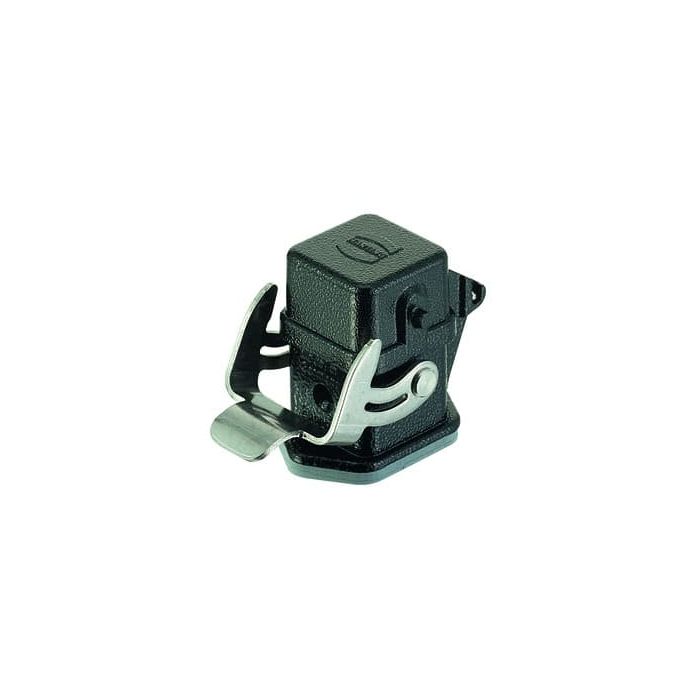

Han 3M-HBM-SL-C
Bulkhead mounted housing, Straight, With metal cover, With seal, Size: 3 A, Single locking lever, Stainless steel, Material (hood/housing): Zinc die-cast, Powder-coated, RAL 9005 (jet black), Material (seal): FPM, Degree of protection: IP65, IP67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 417 Han M® |
| Product Family | Han M Housings |
| Product Brand Name | 09 37 003 0305 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Black |
| Customs tariff number | 85389099 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Han® M |
| Size | 3 A |
| UV Resistant | Yes |
| Material housing | Zink |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Add-on housing |
| Housing colour | Black |
| Interlock type | Longitudinal strap |
| Shackle position | Subsection |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Flap cover present ? | Yes |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
