09370060301
09370060301
Harting

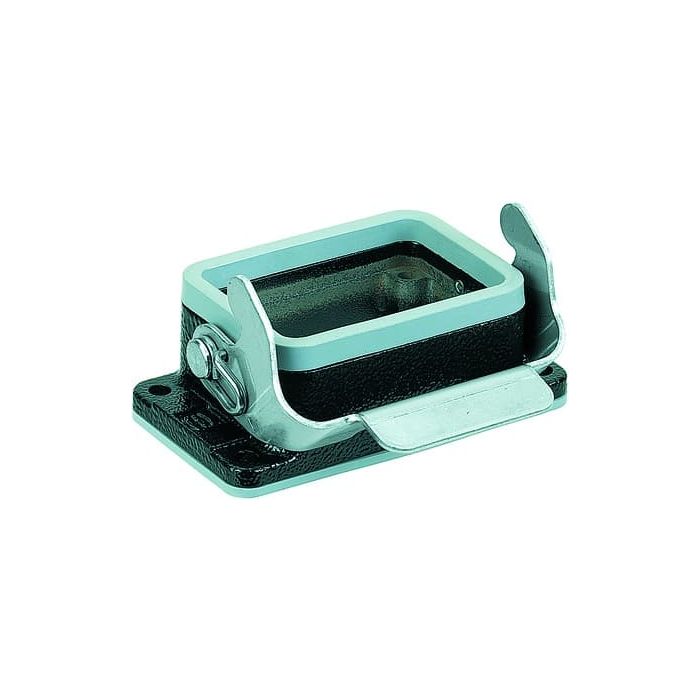

Han M Base Panel 1 Lever
Bulkhead mounted housing, Size: 6 B, Low construction, Single locking lever, Stainless steel, Material (hood/housing): Aluminium die-cast, Powder-coated, RAL 9005 (jet black), Material (seal): FPM, Degree of protection: IP65
In stock
| Attribute | Value |
|---|---|
| Product Segment | 417 Han M® |
| Product Family | Han M Housings |
| Product Brand Name | 09 37 006 0301 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Black |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han® M |
| Size | 6 B |
| UV Resistant | Yes |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Add-on housing |
| Housing colour | Black |
| Interlock type | Longitudinal strap |
| Shackle position | Subsection |
| Housing surface finish | powder-coated |
| Housing coating | powder-coated |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
