09380062611

09380062611

09380062611

Harting

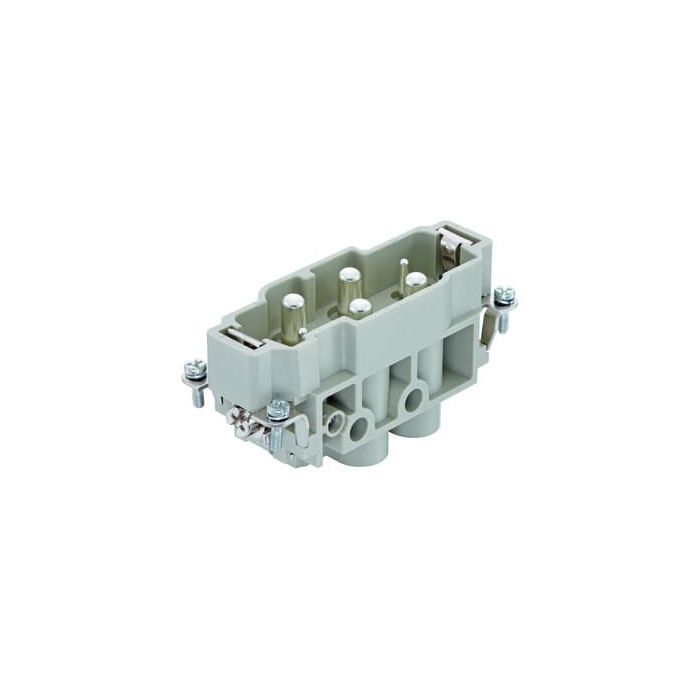

Han K 4/0 Pin Male Insert

Inserts, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:80 A, Size: 16 B, Contacts: 4, Conductor cross-section: 1.5...16 mm, Copper alloy, Silver plated
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment 404 Han-Com®
Product Family Han K Male Insert
Product Brand Name 09 38 006 2611
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1.0000
Quantity Interval 1.0000
Country of origin RO
Manufacturer's Brand Han-Com®
Size 16 B
Number of poles 4.0000
Material contact surface Silver
Insertion cycles minimum 500.0000
PE connection present ? Yes
Rated voltage (V) 830.0000
Contact design Pin
Rated_surge_voltage (V) 8.0000
Wire protection present ? No
Insert material Thermoplast
Conductor connection method Screw connection
Pollution degree 3.0000
Conductor cross-section mm2 1.5…16
Material contact Other copper alloys
Fire resistance class V0
Standards EN 60664-1
Current Rating (A) 80.0000
More Information
Attribute Value
Data Sheet Click here to view
