09380082611
09380082611
Harting

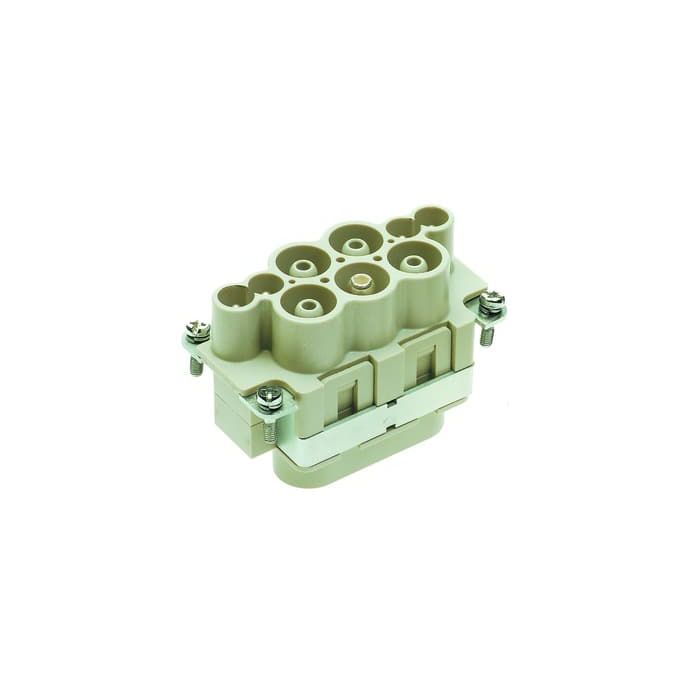

Han K4/4-M 6-16mm
Inserts, Axial screw termination / cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:63 A, Size: 10 B, Contacts: 4, + 4 additional signal contacts, Conductor cross-section: 6...16 mm, 0.14...2.5 mm Signal, Copper alloy, Silver plated
In stock
Attribute | Value |
---|---|
Product Segment | 404 Han-Com® |
Product Family | Han K Male Insert |
Product Brand Name | 09 38 008 2611 |
Manufacturer | HARTING |
Customs tariff number | 85366990 |
Quantity Min | 1 |
Quantity Interval | 1 |
Country of origin | DE |
Manufacturer's Brand | Han-Com® |
Size | 10 B |
Number of poles | 4 |
Material contact surface | Silver |
Insertion cycles minimum | 500 |
PE connection present ? | Yes |
Rated voltage (V) | 690 |
Contact design | Pin |
Rated_surge_voltage (V) | 8 |
Wire protection present ? | No |
Insert material | Thermoplast |
Conductor connection method | Axial screw connection |
Pollution degree | 3 |
Conductor cross-section mm2 | 6…16 |
Material contact | Other copper alloys |
Fire resistance class | V0 |
Standards | EN 60664-1 |
Current Rating (A) | 63 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
