Harting

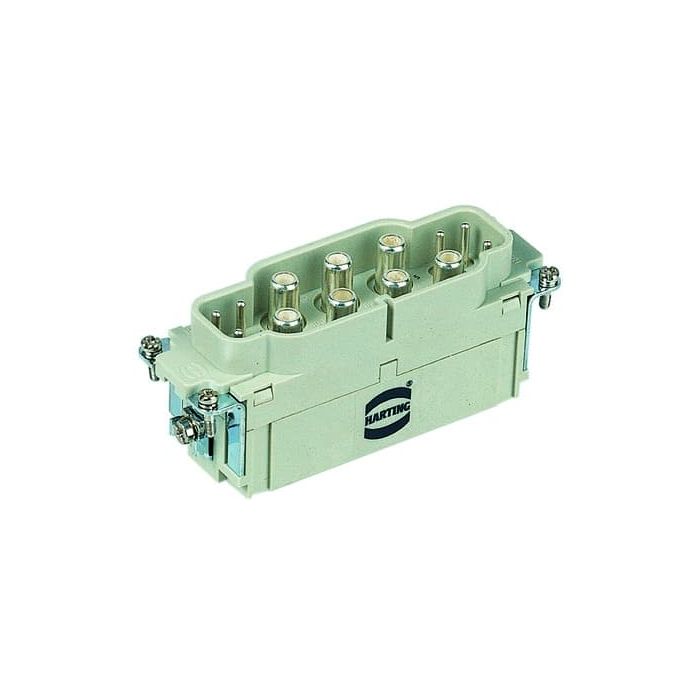

Han K 6/6 Pos. M Insert

Inserts, Axial screw termination / screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:100 A, Size: 24 B, Contacts: 6, + 6 additional signal contacts, Conductor cross-section: 16...35 mm, 0.2...2.5 mm Signal, Copper alloy, Silver plated
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment 404 Han-Com®
Product Family Han K Male Insert
Product Brand Name 09 38 012 2651
Manufacturer HARTING
Customs tariff number 85366990
Quantity Min 1.0000
Quantity Interval 1.0000
Country of origin DE
Manufacturer's Brand Han-Com®
Size 24 B
Number of poles 6.0000
Material contact surface Silver
Insertion cycles minimum 500.0000
PE connection present ? Yes
Rated voltage (V) 690.0000
Contact design Pin
Rated_surge_voltage (V) 8.0000
Wire protection present ? No
Insert material Thermoplast
Conductor connection method Axial screw connection
Pollution degree 3.0000
Conductor cross-section mm2 16…35
Material contact Other copper alloys
Fire resistance class V0
Standards EN 60664-1
Current Rating (A) 100.0000
More Information
Attribute Value
Data Sheet Click here to view
