09380873101
09380873101
Harting

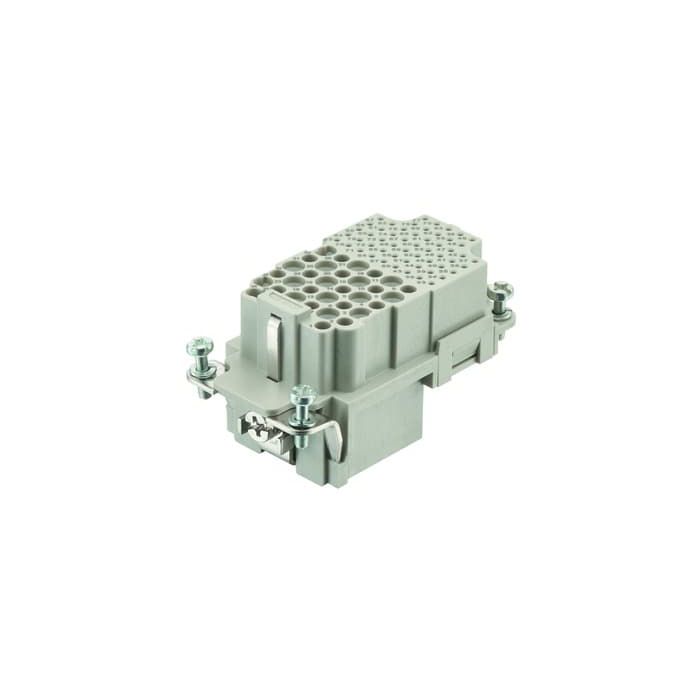

Han K 32-55-F-C
Inserts, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:10 A, Size: 10 B, Contacts: 32, + 55 additional signal contacts, Conductor cross-section: 0.14...2.5 mm, 0.09...0.52 mm Signal
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 404 Han-Com® |
| Product Family | Han K Female Insert |
| Product Brand Name | 09 38 087 3101 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CN |
| Manufacturer's Brand | Han-Com® |
| Size | 10 B |
| Number of poles | 87.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | Yes |
| Contact design | Socket |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Conductor cross-section mm2 | 0.14…2.5 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
