09420200111
09420200111
Harting

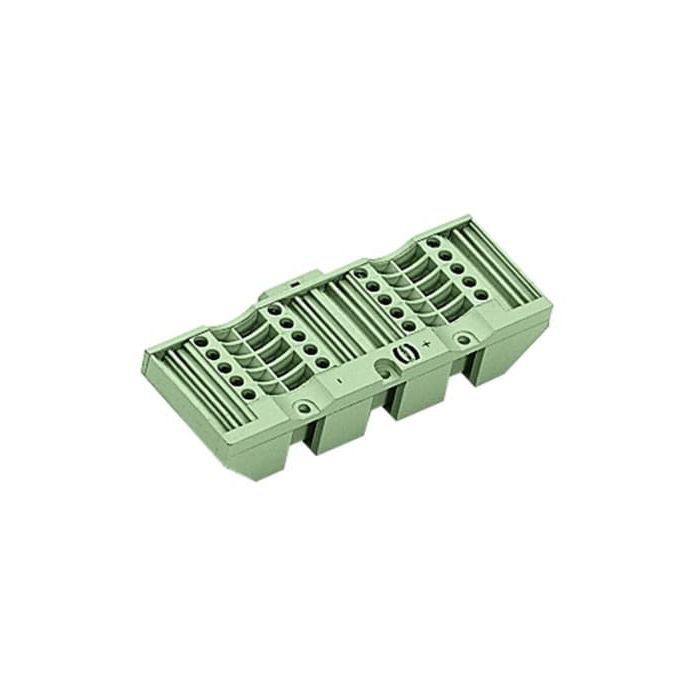

Han Vv 20-1 Multiplier
Inserts, Distributor, Screw termination, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Conductor cross-section: 0.2 ... 2.5 mm², Copper alloy, Tin plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 483 Han VV Distributor |
| Product Family | Han VV Distributor |
| Product Brand Name | 09 42 020 0111 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han D® AV |
| Standards | EN 60664-1 |
| Current Rating (A) | 16.0000 |
| Material contact surface | Tin |
| PE connection present ? | No |
| Rated_surge_voltage (V) | 6.0000 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.2…2.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
