09451459011
09451459011
Harting

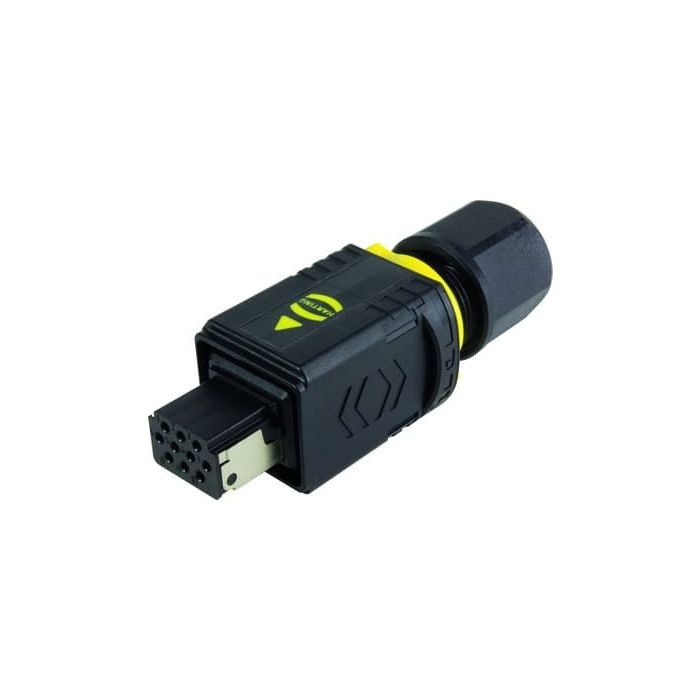

PushPull V4 plug, Signal, 10-pol, Kunsts
Connectors, Crimp termination, Rated current:5 A, Contacts: 10, Copper alloy, Au over Ni, PushPull, Material: Polyamide (PA), Degree of protection: IP65, IP67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | HARTING PushPull Data |
| Product Family | HARTING PushPull |
| Product Brand Name | 09 45 145 9011 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | RO |
| Manufacturer's Brand | HARTING PushPull (V4) |
| Material housing | Polyamide (PA) |
| Number of poles | 10.0000 |
| Material contact surface | Nickel/gold |
| Degree of protection - IP (mounted) | IP65 |
| Rated voltage (V) | 50.0000 |
| Rated_surge_voltage (V) | 1.5 |
| Conductor connection method | crimp connection |
| Conductor cross-section mm2 | 0.13…0.82 |
| Interlock type | Push pull |
| Locking present ? | Yes |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | IEC 61076-3-106 |
| Current Rating (A) | 5.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
