09620031252
09620031252
Harting

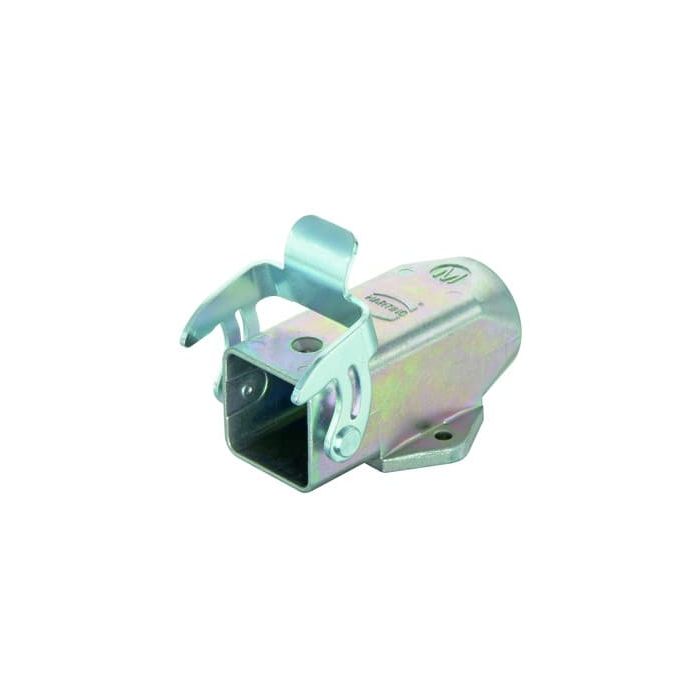

Han A Base Surface flange closed
Surface mounted housing, Bottom closed, Size: 3 A, Single locking lever, Steel, Top entry, 1x Pg 11, Material (hood/housing): Zinc die-cast, Uncoated, Unpainted, Degree of protection: IP44, IP65 / IP67, with seal screw 09 20 000 9918
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 419 Han EMC |
| Product Family | Han EMC Housings |
| Product Brand Name | 09 62 003 1252 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | uncolored |
| Customs tariff number | 85389099 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® EMC |
| Size | 3 A |
| UV Resistant | Yes |
| Material housing | Zink |
| Degree of protection - IP (mounted) | IP44 |
| Design of housing | Socket housing |
| Housing colour | Without |
| Interlock type | Longitudinal strap |
| Shackle position | Subsection |
| Size of connection thread | PG11 |
| Cable entry direction | vertical |
| Number of cable inlets | 1.0000 |
| Cable gland mounting method | PG |
| Housing surface finish | Uncoated |
| Housing coating | Uncoated |
| EMC design present ? | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
