09620061205
09620061205
Harting

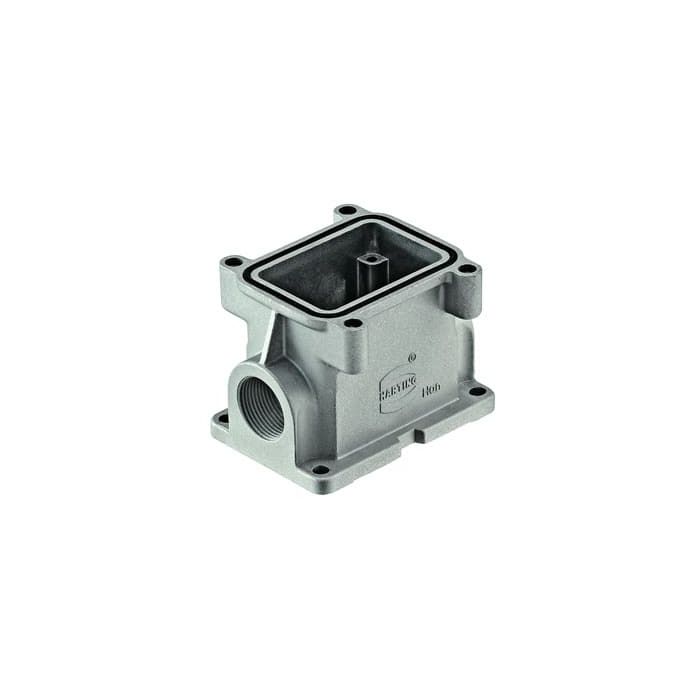

Han 6EMC Base Surface 2 Entries PG 16
Surface mounted housing, Size: 6 B, Screw locking, Side entry, 2x Pg 16, Material (hood/housing): Aluminium die-cast, Uncoated, Unpainted, Material (seal): NBR, Degree of protection: IP65
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 419 Han EMC |
| Product Family | Han EMC Housings |
| Product Brand Name | 09 62 006 1205 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | uncolored |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® EMC |
| Size | 6 B |
| UV Resistant | Yes |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Socket housing |
| Housing colour | Without |
| Interlock type | Screw |
| Shackle position | Without |
| Size of connection thread | PG16 |
| Cable entry direction | lateral |
| Number of cable inlets | 2.0000 |
| Cable gland mounting method | PG |
| Housing surface finish | Uncoated |
| Housing coating | Uncoated |
| EMC design present ? | Yes |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
