09628100974
09628100974
Harting

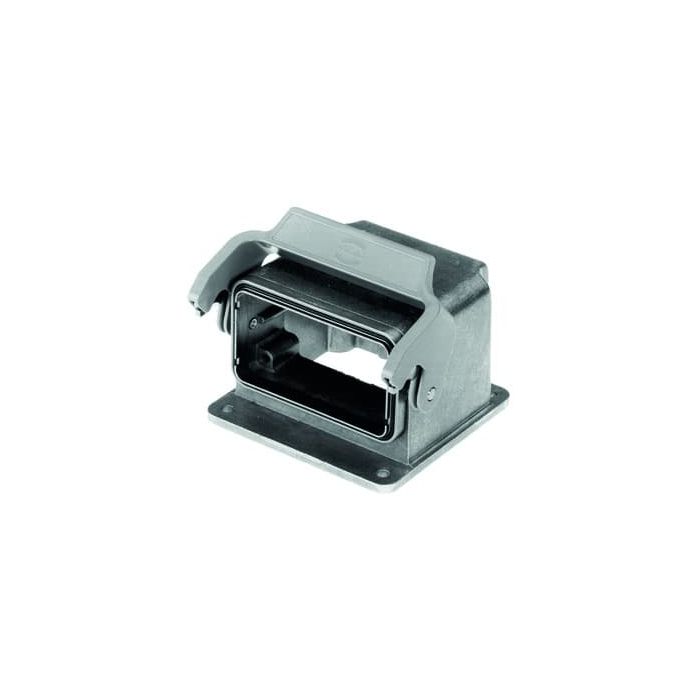

Han 10EMC/B-HBMA/CP-SL-70
Housing for motor application, EMC version, With thermo-plastic cover, Size: 10 B, Single locking lever, Polycarbonate (PC), Stainless steel, Material (hood/housing): Aluminium die-cast, Uncoated, Material (seal): NBR, Degree of protection: IP65
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 426 Han-Drive® Housings |
| Product Family | Han Drive Housings |
| Product Brand Name | 09 62 810 0974 |
| Approvals | CE |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 50.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Drive® |
| Size | 10 B |
| Material housing | aluminium die-cast |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Housing for motor application |
| Interlock type | Longitudinal strap |
| Shackle position | Subsection |
| Housing surface finish | Uncoated |
| Housing coating | Uncoated |
| Flap cover present ? | Yes |
| Seal | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
