09670007470
09670007470
Harting

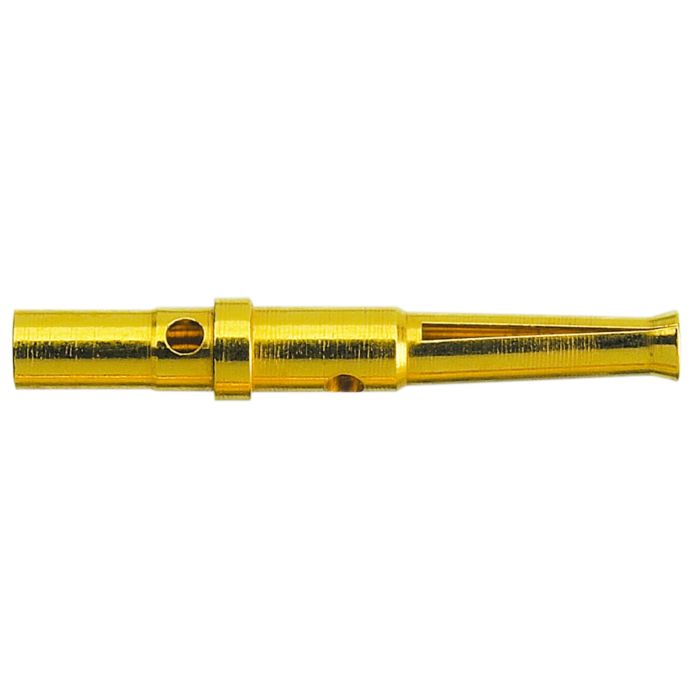

D SUB FE turned contact_AWG24-28_PL1 HMC
Crimp contact, Female, Copper alloy, HMC gold plated, Conductor cross-section: 0.08...0.21 mm, AWG 28 ... AWG 24
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | DSub Cable connector |
| Product Family | D-Sub |
| Product Brand Name | 09 67 000 7470 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100.0000 |
| Quantity Interval | 100.0000 |
| Country of origin | CH |
| Manufacturer's Brand | D-Sub |
| Material contact surface | Gold |
| Contact type | turned |
| Insulation stripped length (mm) | 4.0000 |
| Contact design | Socket |
| Maximum connectable conductor cross section (mm2) | 0.21 |
| Minimum connectable conductor cross section (mm2) | 0.08 |
| Material contact | Other copper alloys |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
