09691815423
09691815423
Harting

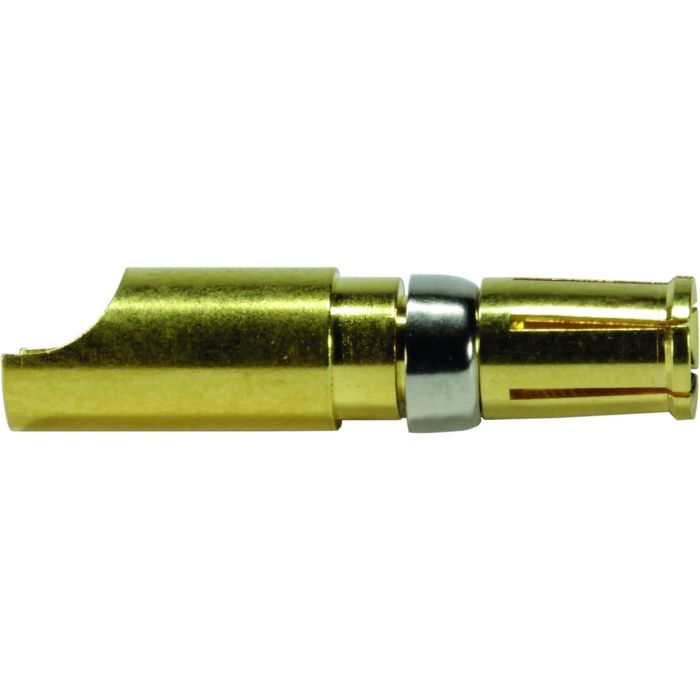

DSUB FE STR SOLDER CONTACT 40A POWER
Solder contact, Straight, Operating current: ≤40 A, Female, Copper alloy, 0.76 µm Au / 5 µm Sn (mating side / termination side), Conductor cross-section: 6.61...16.62 mm, AWG 10 ... AWG 8
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | DSub Combo |
| Product Family | D-Sub |
| Product Brand Name | 09 69 181 5423 |
| Manufacturer | HARTING |
| Customs tariff number | 85369010 |
| Quantity Min | 100.0000 |
| Quantity Interval | 100.0000 |
| Country of origin | DE |
| Manufacturer's Brand | D-Sub |
| Material contact surface | 0.76 µm Au / 5 µm Sn (mating side / termination side) |
| Insertion cycles minimum | 500.0000 |
| Maximum operating ambient temperature (deg C) | 155.0000 |
| Contact type | turned |
| Insulation stripped length (mm) | 7.5 |
| Contact design | Socket |
| Maximum connectable conductor cross section (mm2) | 16.62 |
| Minimum connectable conductor cross section (mm2) | 6.61 |
| Material contact | Other copper alloys |
