09691825423
09691825423
Harting

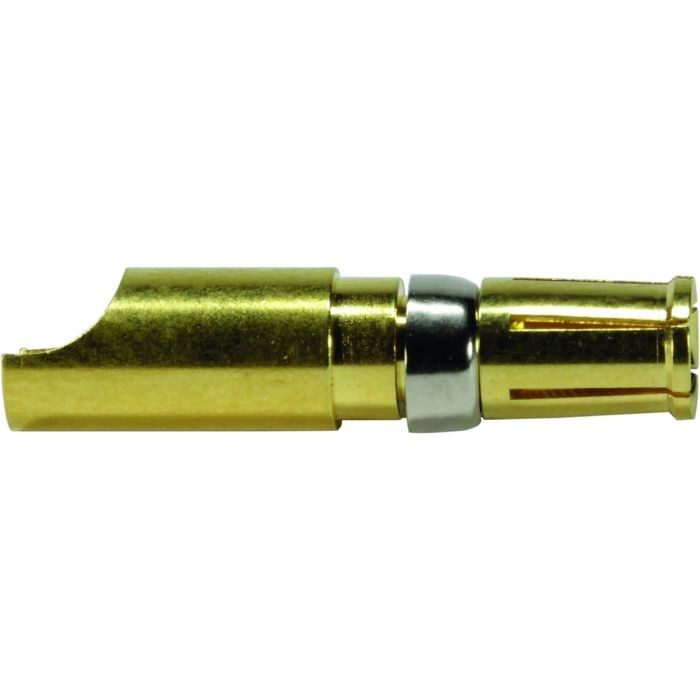

DSUB FE STR CRIMP CONTACT 40A POWER
Crimp contact, Straight, Operating current: ≤40 A, Female, Copper alloy, 0.76 µm Au / 0.2 µm Au (mating side / termination side), Conductor cross-section: 6 mm, AWG 10 ... AWG 8
In stock
| Attribute | Value |
|---|---|
| Product Segment | DSub Combo |
| Product Family | D-Sub |
| Product Brand Name | 09 69 182 5423 |
| Manufacturer | HARTING |
| Customs tariff number | 85369010 |
| Quantity Min | 100 |
| Quantity Interval | 100 |
| Country of origin | DE |
| Manufacturer's Brand | D-Sub |
| Material contact surface | 0.76 µm Au / 0.2 µm Au (mating side / termination side) |
| Insertion cycles minimum | 500 |
| Maximum operating ambient temperature (deg C) | 155 |
| Contact type | turned |
| Insulation stripped length (mm) | 7.5 |
| Contact design | Socket |
| Maximum connectable conductor cross section (mm2) | 6 |
| Material contact | Other copper alloys |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
