Harting

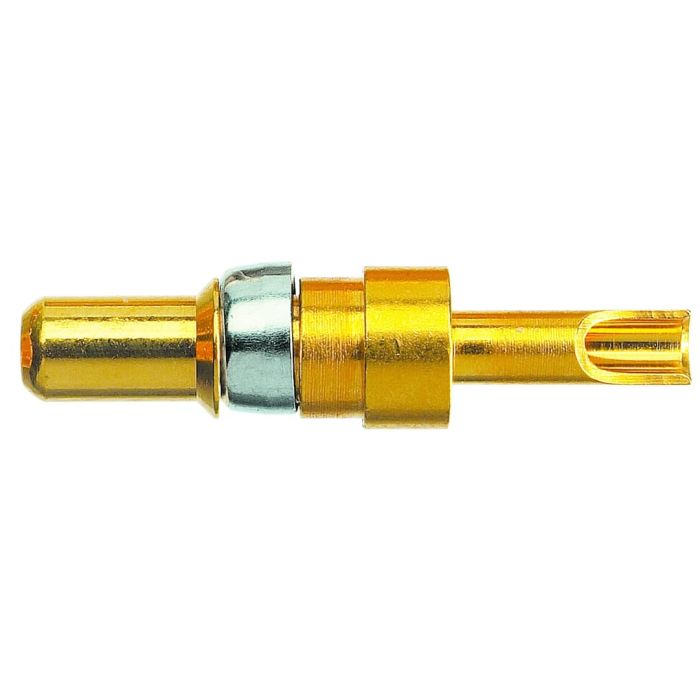

D SUB MIXED MA 10 A CRIMP POWER CONT PL3
Crimp contact, Straight, Operating current: ≤10 A, Male, Copper alloy, 0.2 µm Au, Conductor cross-section: 0.5...1 mm, AWG 20 ... AWG 16
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | DSub Combo |
| Product Family | D-Sub |
| Product Brand Name | 09 69 282 7420 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 100.0000 |
| Quantity Interval | 100.0000 |
| Country of origin | DE |
| Manufacturer's Brand | D-Sub |
| Material contact surface | 0.2 µm Au |
| Insertion cycles minimum | 200.0000 |
| Maximum operating ambient temperature (deg C) | 155.0000 |
| Contact type | turned |
| Insulation stripped length (mm) | 7.5 |
| Contact design | Pin |
| Maximum connectable conductor cross section (mm2) | 1.0000 |
| Minimum connectable conductor cross section (mm2) | 0.5 |
| Material contact | Other copper alloys |
