09696812550
09696812550
Harting

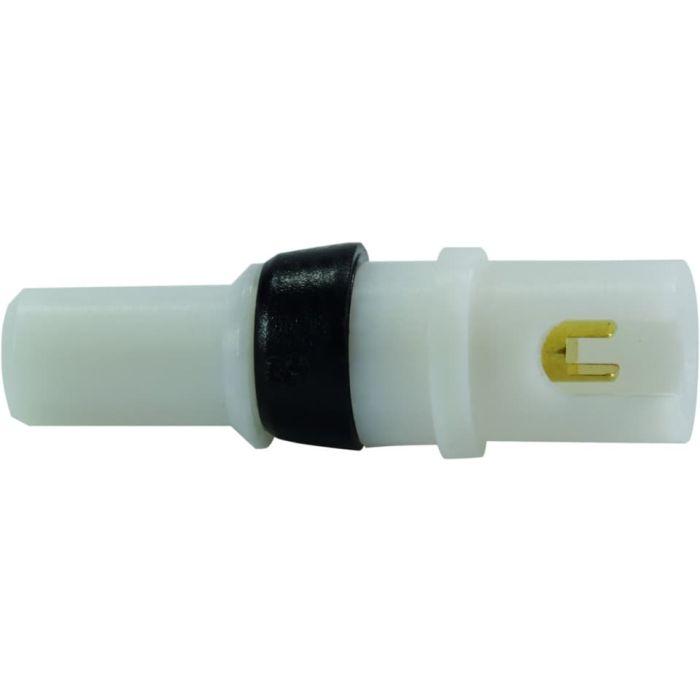

DSUB MA RIGHT ANG HIGH VOLTAGE CONTACT
Solder contact, Angled, Operating current: ≤10 A, Male, Copper alloy, 1.3 µm Au / 1.3 µm Au (mating side / termination side), Conductor cross-section: 0.25...0.52 mm, AWG 24 ... AWG 20
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | DSub Combo |
| Product Family | D-Sub |
| Product Brand Name | 09 69 681 2550 |
| Manufacturer | HARTING |
| Customs tariff number | 85369010 |
| Quantity Min | 20.0000 |
| Quantity Interval | 20.0000 |
| Country of origin | CZ |
| Manufacturer's Brand | D-Sub |
| Material contact surface | 1.3 µm Au / 1.3 µm Au (mating side / termination side) |
| Insertion cycles minimum | 500.0000 |
| Maximum operating ambient temperature (deg C) | 125.0000 |
| Contact type | turned |
| Insulation stripped length (mm) | 2.5 |
| Contact design | Pin |
| Maximum connectable conductor cross section (mm2) | 0.52 |
| Minimum connectable conductor cross section (mm2) | 0.25 |
| Material contact | Other copper alloys |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
