Harting

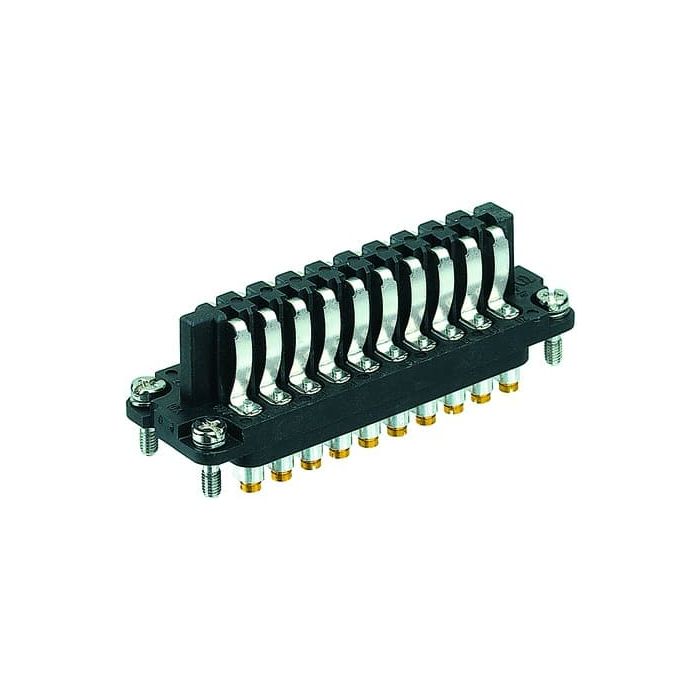

Staf 20 Pos. F Insert Screw
Inserts, Screw termination, Female, Polyamide (PA), Black, Rated current:10 A, Size: 16 A, Contacts: 20, Conductor cross-section: 1.5 mm, Copper alloy, Silver plated
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 422 Staf Inserts |
| Product Family | Staf Insert F |
| Product Brand Name | 09 70 020 2817 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Staf® |
| Size | 16 A |
| Number of poles | 20.0000 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Rated voltage (V) | 25.0000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 0.8 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 1.5 max |
| Material contact | Other copper alloys |
| Fire resistance class | HB |
| Standards | EN 60664-1 |
| Current Rating (A) | 10.0000 |
