09736966947
09736966947
Harting

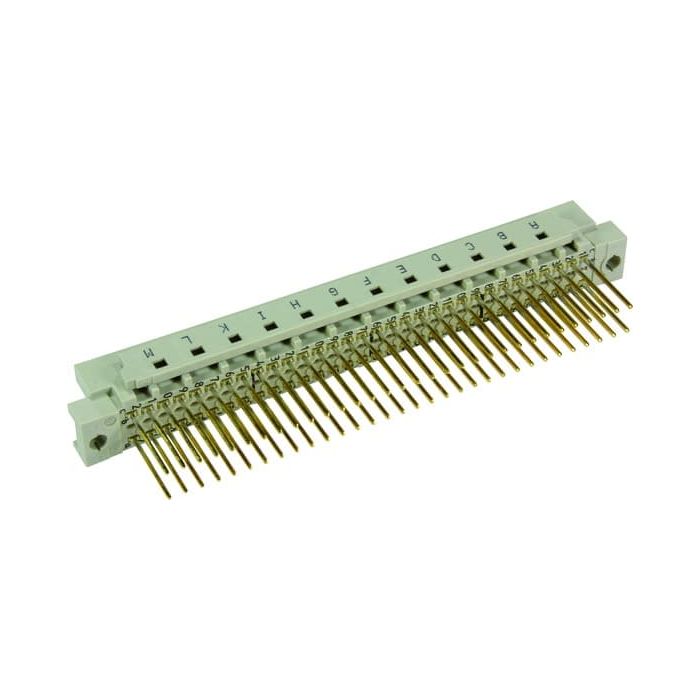

DIN-Signal R096MW-13,0C1-2-cod
Connectors, Male connector, Wrap termination, Rated current:2 A, Contacts: 96, Straight, Copper alloy, Noble metal, Mating side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | QR male |
| Product Family | DIN Signal |
| Product Brand Name | 09 73 696 6947 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 200.0000 |
| Quantity Interval | 20.0000 |
| Country of origin | CH |
| Number of poles | 96.0000 |
| Material contact surface | Noble metal |
| Material of insulation | Thermoplast |
| Direction mating face | Standard |
| Coating plug contact area | Noble metal |
| Number of rows | 3.0000 |
| Type of PCB contacting | Wrap termination |
| Grid dimensions 1 (mm) | 2.54 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | With fixing flange |
| Pin length (mm) | 13.0000 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 2.0000 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
