1.052.0901.01
1.052.0901.01
Hummel

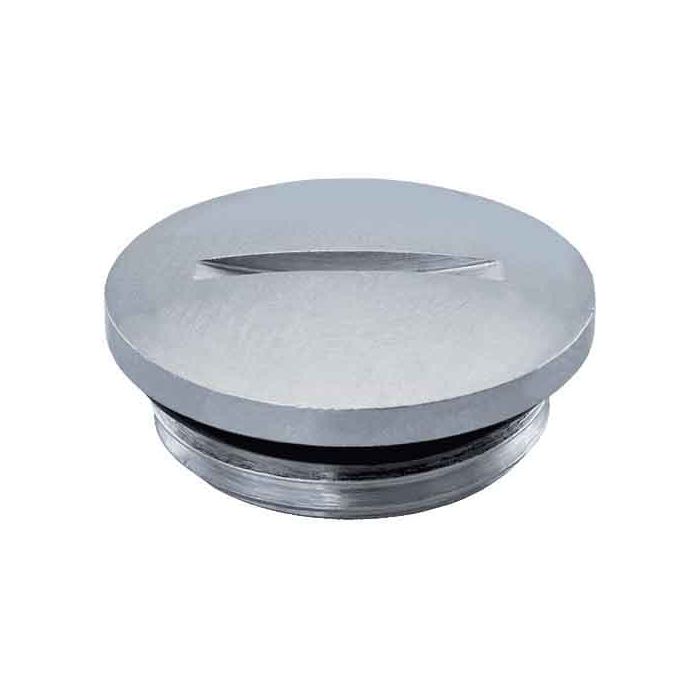

Plug made of brass with thread
Plug made of brass with thread from Hummel. PG. Protection class IP 68 – 10 bar, IP 69 K - -40°C to +80°C
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1052090101 |
| Manufacturer | Hummel |
| Weight (kg) | 0.00638 |
| Further information | Other O-Ring materials upon request |
| Customs tariff number | 74122000 |
| EAN code | 4033878400517 |
| ETIM 7 | EC000032 |
| Packaging Unit | 100 |
| Height (mm) | 9.0000 |
| RoHS | RoHS |
| External thread (AG) | PG 9 |
| Material seals / O-rings | NBR |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | Nickel-plated brass |
| Thread length (mm) | 5.5 |
| Tightening torque [Nm] | 6.0000 |
| Temperature Range | -40°C to +80°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
