Hummel

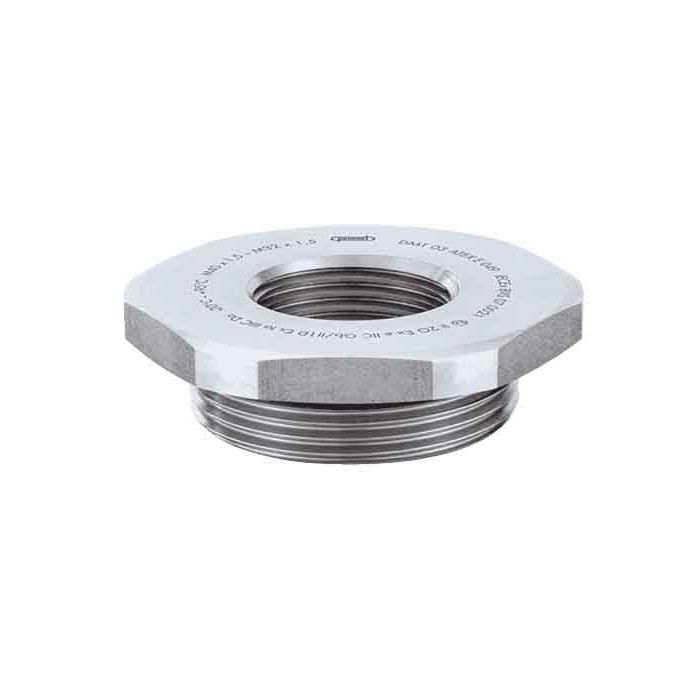

Reduction made of stainless steel for hazardous areas
Reduction made of stainless steel for hazardous areas from Hummel. Metric. Protection class IP 68 – 10 bar, IP 69 K - -20°C to +95°C
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1098502550 |
| Manufacturer | Hummel |
| Weight (kg) | 0.169 |
| Customs tariff number | 73072910 |
| EAN code | 4033878403730 |
| ETIM 7 | EC000938 |
| Packaging Unit | 5 |
| Height (mm) | 13.5 |
| Certificates | EAC, DNV-GL, IECEx, ATEX, INMETRO, CE |
| Version | short |
| External thread (AG) | M50 x 1.5 |
| Material seals / O-rings | NBR |
| Protection class | IP 68 – 10 bar, IP 69 K |
| Material | INOX 1.4305 |
| Thread length (mm) | 9 |
| Internal thread (IG) | M25 x 1.5 |
| Tightening torque [Nm] | 24 |
| Wrench size 1 (SW1) [mm] | 55 |
| Wrench size (SW) [mm] | 55 |
| Ex-protection level | II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb |
| Temperature Range | -20°C to +95°C |
| RoHS | RoHS |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
