1.101.2103.01
1.101.2103.01
Hummel

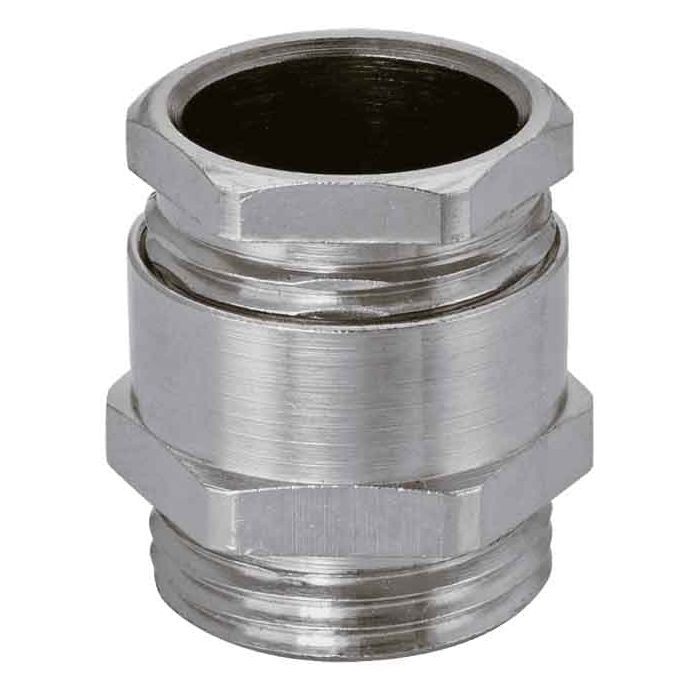

Cable gland made of brass to DIN 46320
Cable gland made of brass to DIN 46320 Protection class - IP 54, IP 65 in case of additional flat seal at connection thread. Version - short. Seal - NBR
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 1101210301 |
| Weight (kg) | 0.04446 |
| Customs tariff number | 74199990 |
| EAN code | 4033878404317 |
| ETIM 7 | EC000441 |
| Packaging Unit | 25 |
| Height (mm) | 24.0000 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 21 |
| Cable diameter (mm) | 17 – 19 |
| Wrench size SW1 / SW2 (mm) | 28/30 |
| Protection class | IP 54, IP 65 in case of additional flat seal at connection thread |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 7.0000 |
| Variant | PG |
| Wrench size 1 (SW1) [mm] | 28.0000 |
| Wrench size (SW) [mm] | 30.0000 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 11 - 20 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -20°C to +80°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
