Hummel

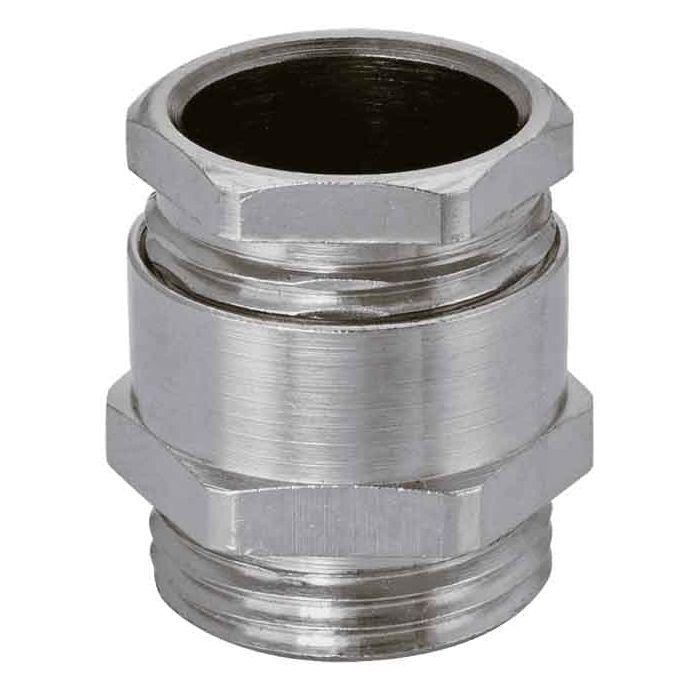

Cable gland made of brass to DIN 46320
Cable gland made of brass to DIN 46320 Protection class - IP 54, IP 65 in case of additional flat seal at connection thread. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1101480301 |
| Weight (kg) | 0.27801 |
| Customs tariff number | 74199990 |
| EAN code | 4033878404430 |
| ETIM 7 | EC000441 |
| Packaging Unit | 5 |
| Height (mm) | 37 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 48 |
| Cable diameter (mm) | 45 – 47 |
| Wrench size SW1 / SW2 (mm) | 60/64 |
| Protection class | IP 54, IP 65 in case of additional flat seal at connection thread |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 10 |
| Variant | PG |
| Wrench size 1 (SW1) [mm] | 60 |
| Wrench size (SW) [mm] | 64 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 41 - 50 |
| Maximum cable diameter (mm) | 41 - 50 |
| Temperature Range | -20°C to +80°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
