Hummel

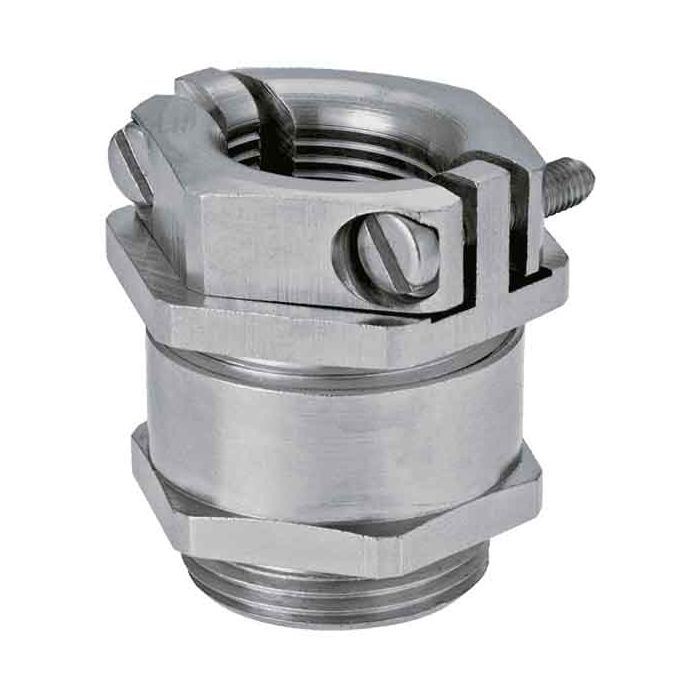

Cable gland made of brass to DIN 46320 with strain relief
Cable gland made of brass to DIN 46320 with strain relief Protection class - IP 54, IP 65 in case of additional flat seal at connection thread. Version - short. Seal - NBR
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1105160101 |
| Weight (kg) | 0.05476 |
| Customs tariff number | 74199990 |
| EAN code | 4033878404614 |
| ETIM 7 | EC000441 |
| Packaging Unit | 50 |
| Height (mm) | 28.5 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 16 |
| Cable diameter (mm) | 10.5 – 16 |
| Wrench size SW1 / SW2 (mm) | 26/24 |
| Protection class | IP 54, IP 65 in case of additional flat seal at connection thread |
| Material | Nickel-plated brass |
| Seal | NBR |
| Thread length (mm) | 6.5 |
| Variant | PG |
| Wrench size 1 (SW1) [mm] | 26 |
| Wrench size (SW) [mm] | 24 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 11 - 20 |
| Temperature Range | -20°C to +80°C |
