Hummel

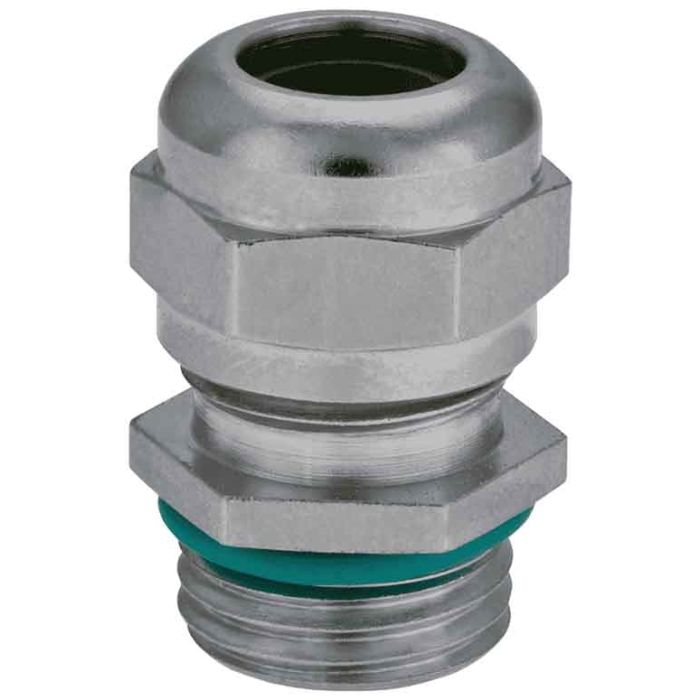

Cable gland made of brass for high temperature applications
Cable gland made of brass for high temperature applications Protection class - IP 68. Version - short. Seal - FKM
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1106070080 |
| Weight (kg) | 0.011 |
| Customs tariff number | 74199990 |
| EAN code | 4033878405055 |
| ETIM 7 | EC000441 |
| Packaging Unit | 100 |
| Height (mm) | 16 |
| Certificates | CE |
| Version | short |
| External thread (AG) | PG 7 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 5 – 7 |
| Wrench size SW1 / SW2 (mm) | 14/14 |
| Protection class | IP 68 |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 6 |
| Variant | PG |
| Tightening torque [Nm] | 4 |
| Wrench size 1 (SW1) [mm] | 14 |
| Wrench size (SW) [mm] | 14 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -25°C to +200°C |
