1.106.0800.55
1.106.0800.55
Hummel

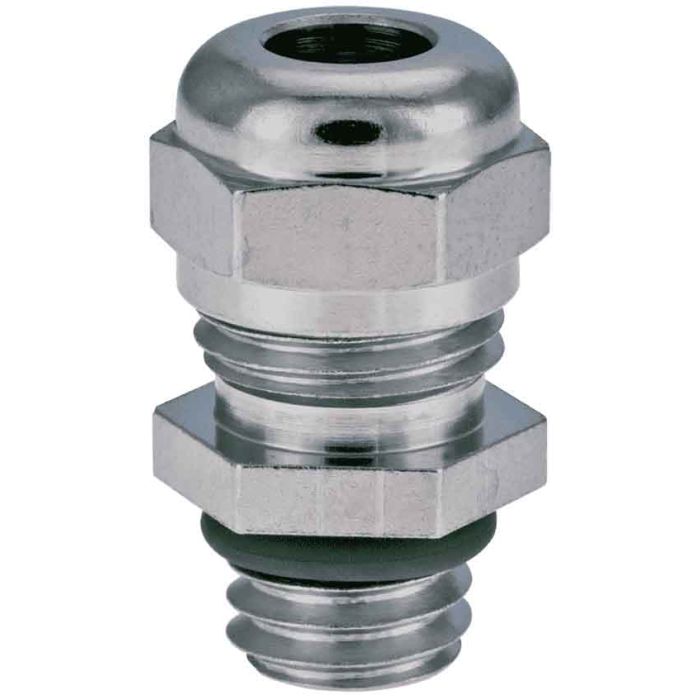

Cable gland made of brass with small dimensions
Cable gland made of brass with small dimensions Protection class - IP 68. Version - short. Seal - FKM
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 1106080055 |
| Weight (kg) | 0.007 |
| Further information | Other thread pitches on request, AISI upon request |
| Customs tariff number | 74199990 |
| EAN code | 4033878405093 |
| ETIM 7 | EC000441 |
| Packaging Unit | 100 |
| Height (mm) | 13 |
| Certificates | CE |
| Version | short |
| External thread (AG) | M8 x 1,25 |
| Material seals / O-rings | FKM |
| Cable diameter (mm) | 3 – 5 |
| Wrench size SW1 / SW2 (mm) | 11/11 |
| Protection class | IP 68 |
| Material | Nickel-plated brass |
| Seal | FKM |
| Thread length (mm) | 6 |
| Variant | Metric |
| Tightening torque [Nm] | 2 |
| Wrench size 1 (SW1) [mm] | 11 |
| Wrench size (SW) [mm] | 11 |
| Norms | RoHS |
| Minimum cable diameter (mm) | 0 - 10 |
| Maximum cable diameter (mm) | 0 - 10 |
| Temperature Range | -25°C to +200°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
